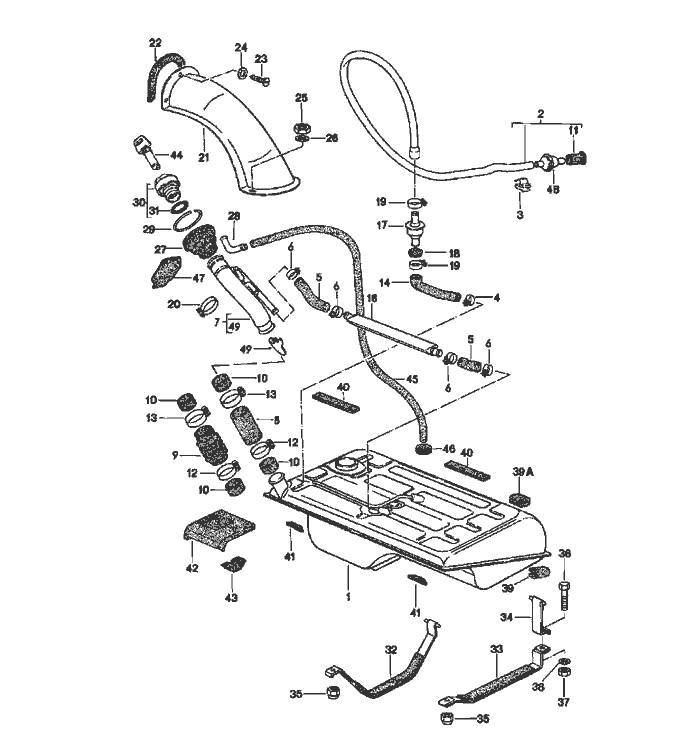

Porsche 924 Kraftstoff Tank Teile

Pos	__Part_Number__	Description	Qty.	Model
		fuel tank
		F >>92CN4 02197 F >>93CN1 00305 F >>92CN4 50831 F >>93CN1 50331		(USA) (CND) (USA) (CND)
1	477 201 021 F	fuel tank 62 liters model year 80/81 use also: 931.201.049.01 N.020.378.1	1
4	N 023 558 1	hose clamp A 9 X 10	1
-	N 020 363 1	hose	*
5	-	15 X 2,5 MM
6	N 024 125 2	hose clamp A 9 X 19	4
7	931 201 049 01	filler neck see technical information NR.11 use also: 477.201.159.H 477.201.159.F 810.201.186.A 477.201.383 N .023.569.2 N .023.558.1 N .023.570.2	1
9	477 201 357	bellows	1
10	944 201 217 00	hose	2
11	321 201 890 A	end piece	1
12	999 512 348 02	hose clamp LA 40-60	1
13	111 501 159 B	hose clamp LA 44-64	1
14	477 201 159 B	breather hose	1
16	477 201 035	expansion tank	1

Pos	__Part_Number__	Description	Remark	Qty.
17	928 201 083 02	shut-off valve		1
18	111 971 911 A	rubber sleeve		1
19	N 023 570 2	hose clamp		2
		A 9 X 15
20	N 020 902 1	tie-wrap		1
		6,5 X 210
21	477 201 347 C	cover		1
22	477 201 351 A	gasket		1
23	N 013 959 3	tapping Schraube		3
		B 3,5 X 16
24	900 151 028 02	washer		3
		4,3
25	N 011 005 14	hexagon nut		2
		M 5
26	900 025 003 02	washer		2
		A 5,3
27	477 201 281 B	sleeve		1
28	477 201 283 A	connection piece		1
29	900 906 045 03	circlip		1
		A 105
30	944 201 061 01	fuel tank cap		1
		without lock cylinder
31	944 201 553 00	gasket		1
32	477 201 302	restraining strap	Right	1
33	477 201 311 B	restraining strap	Left	1
34	477 201 395	restraining strap	Left	1
35	311 101 463	hexagon nut		2
		M 8
36	N 010 335 5	hexagon-head bolt		1
		M 8 X 35
37	900 910 022 09	lock nut		1
		M 8

Pos	__Part_Number__	Description	Remark	Qty.
38	N 011 525 13	washer A 8,4		1
39	481 201 647	intermediate piece		2
39A	944 201 647 00	intermediate piece		2
40	477 201 295 B	intermediate layer		4
41	477 201 295 B	intermediate layer		1
42	477 863 160	gasket		1
43	477 863 162 A	sound absorber		1
44	477 201 594	lock cylinder with keys w/o stipulated lock number		1
44	477 201 594 A	lock cylinder with 1 key state lock number		1
45	477 201 393 A	hose		1
46	021 119 569	rubber sleeve		1
47	928 201 057 02	protective flap	81	1
48	810 201 186 A	bleeder valve	81	1
49	931 201 359 02	flap		1
