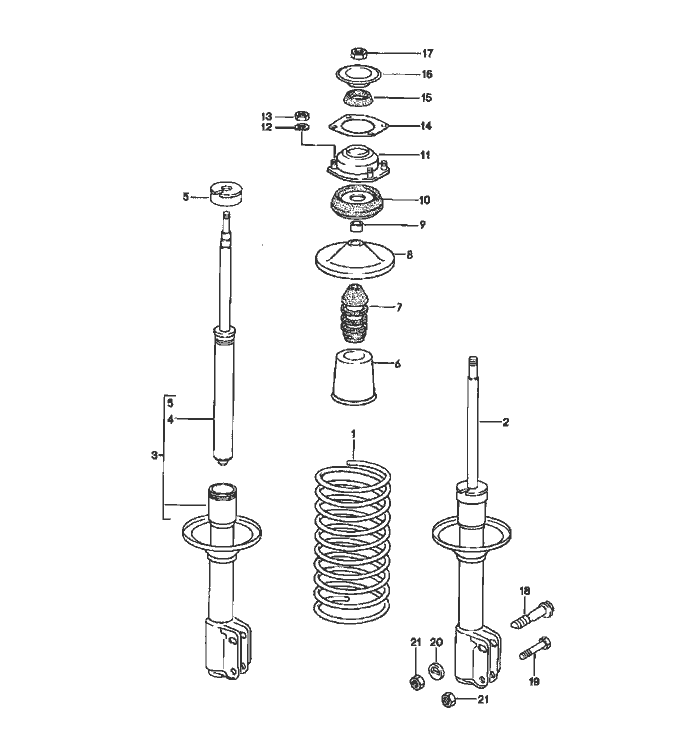

Porsche 924 Aufhängung Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		suspension
		vibration damper
1	477 411 105 G	coil spring	-80	1	924
		1 set
		identification
	954	red
(1)	477 411 105 M	coil spring	-80	1	924 M 404
		1 set			M 471
		identification
	954	green
(1)	477 411 105 M	coil spring	81	1	924
		1 set
		identification
	954	green
(1)	477 411 105 Q	coil spring		1	TURBO
		1 set
		identification
	954	blue
3	944 343 031 11	vibration damper	Left	1	TURBO,GT
		-koni -
(3)	944 343 032 11	vibration damper	Right	1	TURBO,GT
		-koni
4	477 412 059 A	insert		2	924
		-koni -
(4)	944 343 059 00	insert		2	TURBO,GT
		-koni
5	171 412 045	union nut		2
6	171 412 135	boot		2
7	171 412 303 C	rubber stop		2
8	133 412 341	concave washer		2
9	823 412 365	spacer sleeve		2
10	944 343 071 00	suspension strut mounting		2
11	477 412 345	bearing flange		2

Pos	__Part_Number__	Description	Remark	Qty.	Model
12	N 012 228 3	spring washer B 12		8
13	N 011 008 8	hexagon nut M 8		8
(14)	133 412 367	sealing ring		2
15	477 412 411	stop ring		2
16	477 412 147	stop		2
17	N 022 150 1	lock nut VM 14 X 1,5		2
18	171 407 265	eccentric Schraube		2
19	900 082 058 02	hexagon-head bolt M 12 X 1,5 X 50		2
20	944 343 175 00	eccentric washer		2
21	N 022 141 4	lock nut VM 12 X 1,5		4
