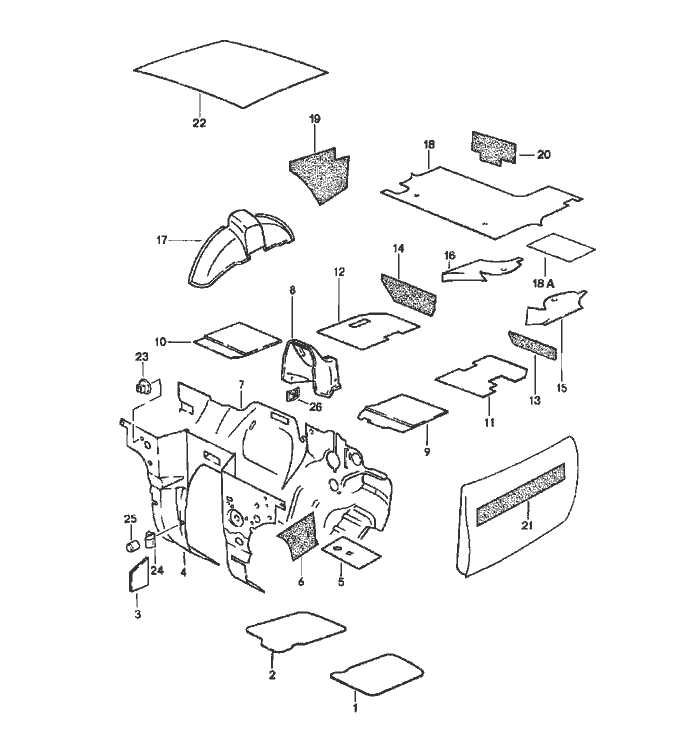

Porsche 924 Body Sound Proofing 1 Teile
|
|
| Pos | __Part_Number__ | Description | Remark | Qty. | Model | | | | body sound proofing 1 | | | | | 1 | 477 863 771 | sound absorber lid | Left | 1 | | | 2 | 477 863 772 | sound absorber lid | Right | 1 | 924 | | (2) | 477 863 772 A | sound absorber lid | Right | 1 | TURBO | | 3 | 477 863 871 | heat protection side member | Right | 1 | | | (4) | 944 556 089 00 | insulation for engine compartment | Left Hand Drive | 1 | | | 5 | 477 863 849 | insulation water drip pan | Vorder Left | 1 | | | 6 | 477 863 837 | sound absorber side section | /L -83 | 1 | | | (6) | 477 863 838 | sound absorber side section | /R -83 | 1 | | | (6) | 944 556 083 00 | sound absorber side section | /LL/L84- | 1 | | | (6) | 944 556 084 00 | sound absorber side section | /LL/R84- | 1 | | | 7 | 477 863 855 | insulation firewall F >>92BN4 50152 | Left Hand Drive | 1 | 924/TURBO 924 | | | | F >>93BN1 50187 | | | TURBO | | 7 | 477 863 855 E | insulation firewall | Left Hand Drive | 1 | | | | | F 92BN4 50153>>92BN4 52155 F 92CN4 00001>>92CN4 02197 F 92CN4 50001>>92CN4 50831 | | | 924 924 (J) 924 | | | | F 93BN1 50188>>93BN1 51529 | | | TURBO | | | | F 93CN1 00001>>93CN1 00305 F 93CN1 50001>>93CN1 50331 | | | TURBO (J) TURBO | | 7 | 477 863 855 F | insulation firewall | Left Hand Drive | 1 | | | | | F 92CN4 02198>> F 92CN4 50832>> F 93CN1 00306>> F 93CN1 50332>> | | | 924 (J) 924 TURBO (J) TURBO |
| Pos | __Part_Number__ | Description | Remark | Qty. | Model | | 8 | 477 863 667 A | sound absorber | Vorder | 1 | | | 9 | 477 863 775 | sound absorber floor | Left Hand Drive \/ Left Side | 1 | | | 10 | 477 863 776 | sound absorber floor | Left Hand Drive \/ Right Side | 1 | | | 11 | 477 863 773 | sound absorber floor | Left | 1 | | | 12 | 477 863 774 | sound absorber floor | Right | 1 | | | 13 | 944 556 085 00 | sound absorber cross member | Left | 1 | | | (13) | 944 556 086 00 | sound absorber cross member | Right | 1 | | | 14 | 477 863 845 A | sound absorber heel plate | Left | 1 | | | (14) | 477 863 846 A | sound absorber heel plate | Right | 1 | | | 15 | 944 556 777 01 | sound absorber | Left | 1 | | | 16 | 944 556 778 01 | sound absorber bracket | Right | 1 | | | (17) | 477 863 885 | insulation wheel housing F >>92CN4 02197 F >>92CN4 50831 F >>93CN1 00305 F >>93CN1 50331 | Left | 1 | 924 (J) 924 TURBO (J) TURBO | | (17) | 944 556 885 00 | sound absorber wheel housing F 92CN4 02198>> F 92CN4 50832>> | Left | 1 | 924 (J) 924 | | | | F 93CN1 00306>> F 93CN1 50332>> | | | TURBO (J) TURBO | | (17) | 477 863 886 | sound absorber wheel housing F >>92CN4 02197 F >>92CN4 50831 | Right | 1 | 924 (J) 924 | | | | F >>93CN1 00305 F >>93CN1 50331 | | | TURBO (J) TURBO |
| Pos | __Part_Number__ | Description | Remark | Qty. | Model | | 17 | 944 556 886 00 | sound absorber wheel housing F 92CN4 02198>> F 92CN4 50832>> F 93CN1 00306>> F 93CN1 50332>> | Right |
1 |
924 (J) 924 TURBO (J) TURBO |
| (18) | 477 863 799 | sound absorber boot floor plate F >>92CN4 02197 F >>92CN4 50831 F >>93CN1 00305 F >>93CN1 50331 | |
1 |
924 (J) 924 TURBO (J) TURBO |
| 18 | 944 556 079 00 | sound absorber boot floor plate F 92CN4 02198>> F 92CN4 50832>> F 93CN1 00306>> F 93CN1 50332>> | |
1 |
924 (J) 924 TURBO (J) TURBO |
| 18A | 477 863 893 A | sound absorber boot floor plate | |
1 |
|
| 19 | 477 863 865 | sound absorber side section | Left |
1 |
924/TURBO |
| (19) | 477 863 866 | sound absorber side section | Right |
1 |
924/TURBO |
| 20 | 477 863 867 | insulation spare-wheel well | |
1 |
|
| 21 | 993 556 521 00 | insulation door | |
2 |
|
| 22 | 944 556 609 00 | sound absorber roof | |
1 |
|
| 23 | 999 049 002 40 | push button |
82 |
13 |
|
| 24 | 944 556 849 00 | clip |
82 |
6 |
|
| 25 | 999 049 001 40 | plastic nut |
82 |
6 |
|
| 26 | N 900 661 01 | clamping washer | |
5 |
|
|
