Porsche 924 Mounting Teile Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model

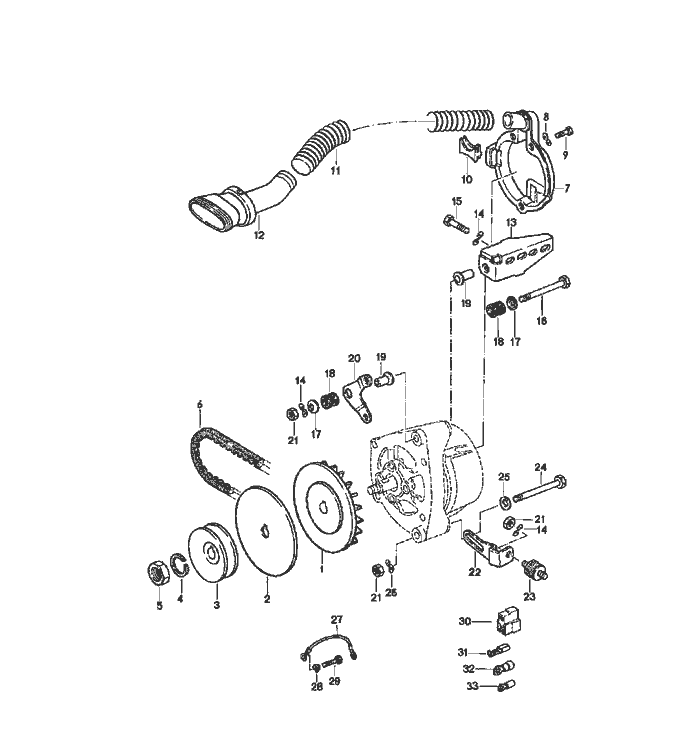

		mounting parts				924
		generator
1	063 903 171	fan			1
2	047 903 129	damping washer			1
3	046 903 119	v-belt pulley		-80	1
		$ 66
3	035 903 119 C	pulley		81	1
		$ 61
4	N 012 016 1	lock ring			1
		A 14
5	900 078 005 01	hexagon nut			1
		M 14 X 1,5
(6)	047 903 137 A	v-belt		-80	1
		for
		pulley
		66 $
6	999 192 200 50	v-belt		81	1
		for
		pulley
		61 $
7	046 903 187 A	protection cap			1
8	N 012 226 5	spring washer			3
		B 6
9	999 072 005 09	hexagon-head bolt			3
		M 6 X 12
10	046 903 201 A	intermediate piece			1
11	477 819 395	hose			1
-	N 024 090 1	hose clamp			1
12	047 903 199	connection piece			1
13	046 903 143 A	support	Left Hand Drive		1
14	N 012 241 11	spring washer			4
		B 8
15	N 010 239 11	hexagon-head bolt			4
		M 8 X 18

Pos	__Part_Number__	Description	Remark	Qty.	Model
16	N 010 391 4	hexagon-head bolt	Left Hand Drive		1
		BM 8 X 95
17	059 903 265 A	concave washer			2
18	059 903 263 A	bush	Left Hand Drive		2
19	059 903 127 A	sleeve	Left Hand Drive		1
20	046 903 145 A	support	Left Hand Drive		1
21	N 011 008 8	hexagon nut			3
		M 8
22	046 903 255 A	clamp	Left Hand Drive		1
23	047 903 149	rubber mounting			1
24	N 010 370 5	hexagon-head bolt			1
		M 8 X 70
25	823 711 815	washer			1
		A 8
26	N 012 229 3	spring washer			1
		A 8
27	059 971 233 C	ground strap			1
28	N 012 226 5	spring washer			1
		B 6
29	N 010 210 13	hexagon-head bolt			1
		M 6 X 10
30	821 971 970	terminal sleeve housing			1
31	111 971 959	flat receptacle			X
		6,3 X 3
32	111 971 947 B	cable shoe			X
		A 5 X 6
33	111 971 949 B	cable shoe			X
		A 5 X 2,5
