Porsche 944 Kurbelgehäuse Teile

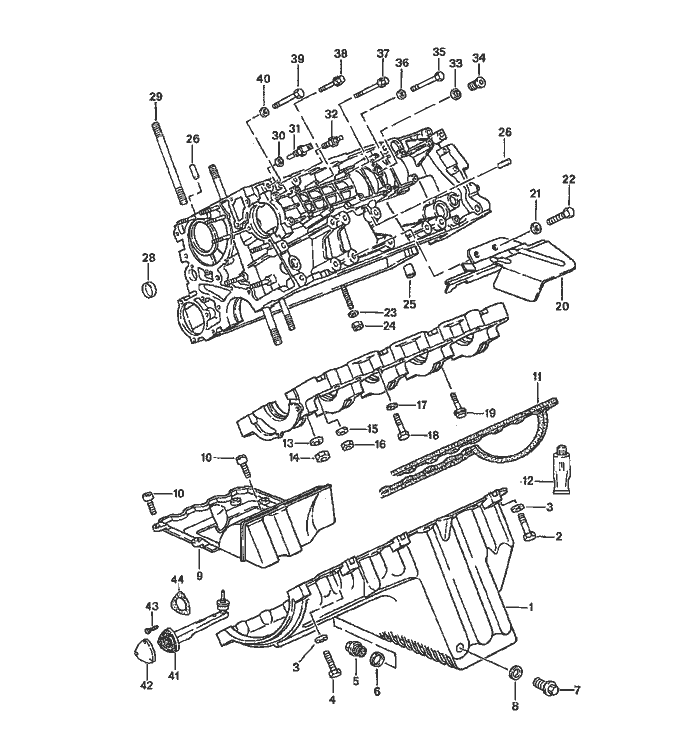

Kurbelgehäuse


Pos__Part_Number__DescriptionRemarkQty.Model
  crankcase
  mounting parts
1 944 101 201 14oil pan  1 M44.11/12/52
  M --46K   M44.11
  M --46K   M44.12
  M --47K   M44.52
1 944 101 204 00oil pan  1 M44.41/52
2 N 040 259 1hexagon-head bolt  4
  M 6 X 50
3 N 011 524 7washer  22
4 900 075 017 02hexagon-head bolt  18
  M 6 X 25
5 944 107 197 01Schraube plug  1
6 900 123 118 30sealing ring  1
7 N 016 164 1Schraube plug  1
8 900 123 049 30sealing ring  1
9 944 107 389 02insert for oil sump  1
  M --46K   M44.11
  M --46K   M44.12
  M --47K   M44.52
9 944 107 389 03insert for oil sump  1 M44.41/52
10 900 119 001 02pan-head Schraube  7
  M 5 X 12
11 944 101 205 02oil sump gasket  1
12 000 043 019 01sealing compound  X
  1 tube
  SILASTIK 730 RTV
12 000 043 010 00loctite  1
  574
  1 50-g tube
13 944 104 229 00washer  10
14 N 011 020 8hexagon nut  10
  M 12 X 1,5
15 928 101 303 00washer  7

Pos__Part_Number__DescriptionRemarkQty.Model
16 N 011 010 13hexagon nut  7
  M 10
17 900 025 007 02washer  7
18 900 074 040 02hexagon-head bolt  7
  M 8 X 50
19 900 075 345 02hexagon-head bolt  5
  M 6 X 35
20 944 101 033 04heat shield  1
21 900 025 007 02washer  2
22 900 075 085 02hexagon-head bolt  2
23 N 011 524 7washer  1
24 900 076 010 02hexagon nut  1
25 928 101 195 03fitting bushing  1
26 999 012 034 00straight pin  4
  8 X 12
28 N 011 919 1lid  2
  $ 25 MM
28 N 011 920 1lid  2
  $ 26 MM
29 944 101 197 01stud  10 M44.11/12
29 944 101 197 00stud  10 M44.52
29 944 101 197 03stud  10 M44.41
30 900 123 101 30sealing ring  1
31 944 606 125 00temperature sensor  1
32 928 606 201 01remote temperature sensor  1
33 900 123 007 30sealing ring  1
34 900 219 002 02Schraube plug  1
35 900 074 326 08hexagon-head bolt  4
  M 8 X 58
36 999 025 141 02washer  4

Pos__Part_Number__DescriptionRemarkQty.Model
37 900 075 344 02hexagon-head bolt M 6 X 50 Z1  16
38 900 075 349 02hexagon-head bolt M 6 X 42 Z1  4
39 900 074 139 02hexagon-head bolt M 8 X 55 hexagon-head bolt M 8 X 65  X 4 M 657
40 900 025 007 02washer  8
41 944 613 150 00sender for oil level  1
42 944 101 329 01lid  1
43 999 074 035 02hexagon-head bolt M 5 X 20  3
44 944 101 233 02gasket  1
 999 062 044 02stud for chain adjuster M 8 X 30  3
 999 062 093 02stud for water pump M 6 X 35  3
 999 062 095 02stud for  1
  water pump M 6 X 32
 999 062 258 08stud M 10 X 55  7
 944 101 185 05stud  2
 944 101 185 06stud M 12 X 110  8
