Porsche 944 Nockenwelle Housing Teile

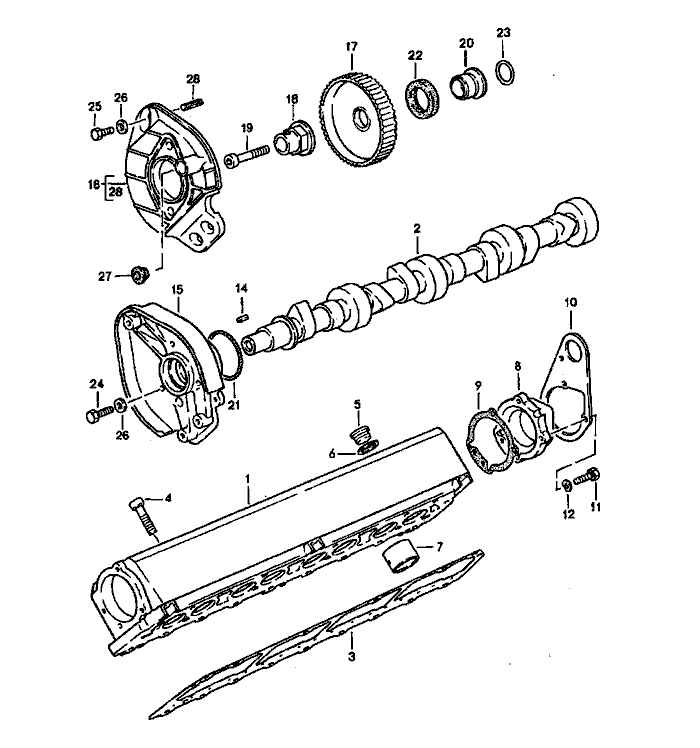

Nockenwelle Housing


Pos__Part_Number__DescriptionRemarkQty.Model
  camshaft housing   M44.11/12/52
  camshaft
1 944 105 250 07camshaft housing  1
2 944 105 155 10camshaft  1 M44.11/12
2 944 105 155 05camshaft  1 M44.52
3 * 944 105 199 03gasket  1
4 900 067 214 02pan-head Schraube  15
  M 8 X 35
5 900 219 009 30Schraube plug  6
  M 18 X 1,5
6 900 123 140 30sealing ring  6
  A 18 X 22
7 928 105 311 06hydraulic valve tappet  8
8 928 105 153 04lid  1
9 * 928 105 189 02gasket  1
10 944 101 413 02engine lifting bracket  1
11 900 075 016 02hexagon-head bolt  3
  M 6 X 22
12 N 012 226 5spring washer  3
  B 6
14 900 117 045 00feather key  1
  4 X 4
15 944 105 119 03camshaft bearing  1
16 944 105 029 01bracket  1
17 944 105 545 03camshaft timing gear  1
18 944 105 142 00driver  1
19 999 510 022 08pan-head Schraube  1
  M 10 X 65
20 928 105 139 04spacer sleeve  1
21 * 999 701 602 40o-ring  1
  50 X 5

Pos__Part_Number__DescriptionRemarkQty.Model
22 999 113 349 40shaft sealing ring 32 X 47  1
23 * 944 105 321 00gasket  1
24 N 010 347 3hexagon-head bolt M 6 X 35  3
25 900 074 015 02hexagon-head bolt M 6 X 30  3
26 N 011 524 7washer A 6,4  6
27 944 105 131 00stopper  1
28 999 095 103 01roll pin 8 X 16  2
