Porsche 944 Nockenwelle Teile

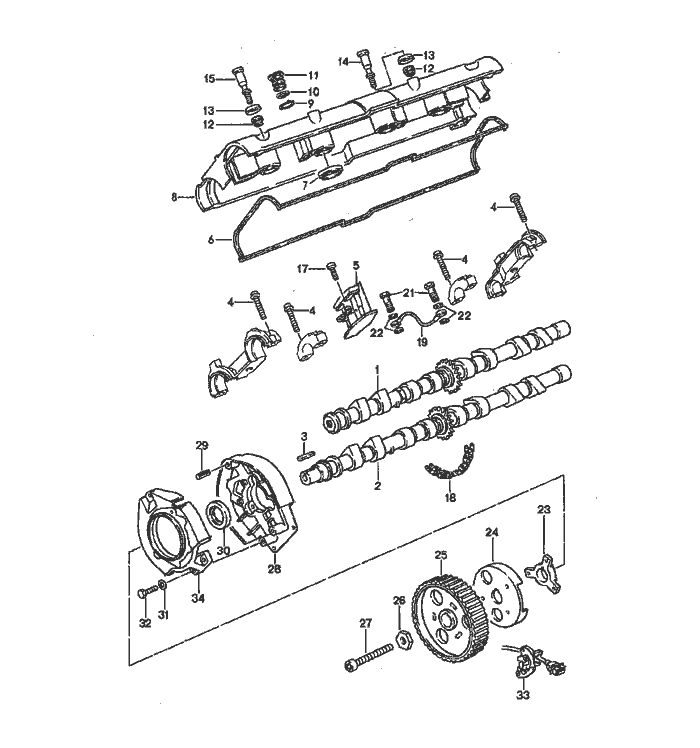

Nockenwelle


Pos__Part_Number__DescriptionRemarkQty.Model
  camshaft   M44.41
1 944 105 277 07camshaft  1
  intake
2 944 105 275 09camshaft  1
  exhaust
3 900 117 073 00feather key  1
4 999 510 029 02combination Schraube  24
  M 8 X 40
5 944 105 049 01chain adjuster  1
6 928 104 447 09gasket  1
7 928 104 443 08sealing ring  4
8 928 104 461 08cylinder head cover  1
9 N 012 420 1circlip  2
10 900 174 056 40o-ring  2
11 928 104 485 01lid  2
12 928 104 115 02thrust ring  13
13 928 104 116 00thrust washer  13
14 928 104 117 01pan-head Schraube  10
  long
15 928 104 111 01pan-head Schraube  3
  short
17 N 014 740 2pan-head Schraube  2
18 944 105 501 05timing chain  1
19 944 105 167 07pipeline  1
21 928 105 476 00banjo bolt  2
22 900 123 050 30sealing ring  4
23 928 105 459 00hub  1
24 944 105 229 03rotor trim  1
25 944 105 545 12camshaft timing gear  1

Pos__Part_Number__DescriptionRemarkQty.Model
26 928 105 457 02washer  1
27 999 510 022 08pan-head Schraube  1
28 944 105 179 08toothed belt covering  1
29 999 095 103 01roll pin  1
30 999 113 282 40shaft sealing ring  1
31 900 025 007 02washer  3
32 900 075 014 02hexagon-head bolt  3
33 -hall sender
  see group
  9/01/01
34 944 105 189 04toothed belt covering  1
-944 105 131 01stopper  1
