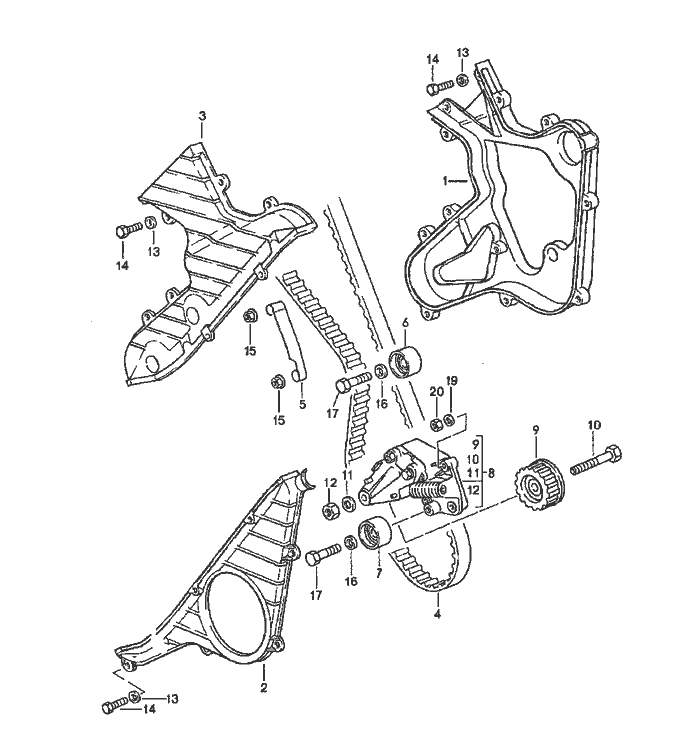

Porsche 944 Antrieb Ausgleichswelle Teile

Antrieb Ausgleichswelle


Pos__Part_Number__DescriptionRemarkQty.Model
  driving mechanism
  camshaft
1 944 105 039 04toothed belt covering  1 M44.11/12
     M44.52
  M >> 47M 01258   M44.52
(1) 944 105 039 05toothed belt covering  1 M44.52
  M 47M 01259 >>   M44.52
1 944 105 033 08toothed belt covering  1 M44.41
2 944 105 037 00toothed belt covering  1
     M44.52
  M >> 47M 01258   M44.52
(2) 944 105 037 01toothed belt covering  1 M44.52
  M 47M 01259 >>   M44.52
3 944 105 041 01toothed belt covering  1 M44.11/12/52
3 944 105 035 01toothed belt covering  1 M44.41
4 944 105 157 04toothed belt  1 M44.11/12/52
4 944 105 323 02toothed belt  1 M44.41
5 944 105 213 01securing clip  1
6 944 105 241 03roller  1
7 944 105 241 02roller  1 M44.41
8 944 105 067 14tensioner for toothed belt  1 M44.11/12/52
8 944 105 067 13tensioner for toothed belt  1 M44.41
9 944 105 631 04tensioning roller  1 M44.11/12/52
9 944 105 631 10tensioning roller  1 M44.41
10 N 010 445 2hexagon-head bolt  1
  M 10 X 45
11 900 025 008 09washer  1
12 900 910 034 02lock nut  1
  M 10
13 N 011 524 7washer  11
14 999 072 005 09hexagon-head bolt  11
  M 6 X 12

Pos__Part_Number__DescriptionRemarkQty.Model
15 999 084 092 02lock nut  2
16 900 025 008 09washer  2
17 900 075 043 02hexagon-head bolt  2
  M 10 X 30
19 900 025 007 02washer  3
20 900 076 025 02hexagon nut  3
