Porsche 944 Wasser Pumpe Teile

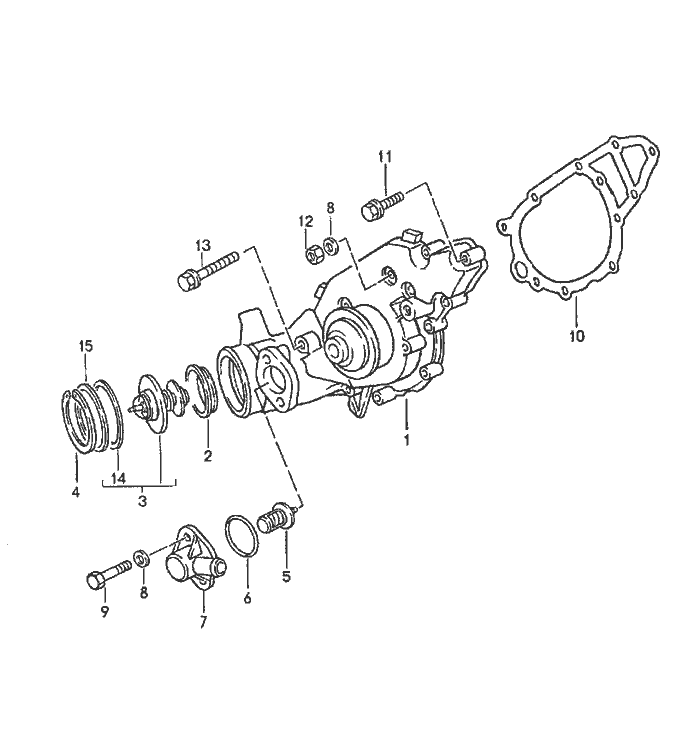

Wasser Pumpe


Pos__Part_Number__DescriptionRemarkQty.Model
  water pump
1 944 106 021 24water pump  1 M44.11/12/41
1 951 106 021 10water pump  1 M44.52
2 951 106 155 00sealing ring  1
3 944 106 019 00thermostat  1
4 900 042 025 01circlip  1
  55 X 2
5 951 106 311 00thermostat  1 M44.52
6 999 707 283 40round seal  1
  28 X 2,5
7 951 106 313 00housing  1
  black
8 N 011 524 7washer  2
9 900 067 011 02pan-head Schraube  2
  M 6 X 20
10 944 106 132 03gasket  1 M44.11/12/41
10 944 106 132 04gasket  1 M44.52
11 900 075 345 02hexagon-head bolt  7
  M 6 X 35
12 900 076 010 02hexagon nut  4
  M 6
13 900 074 302 02hexagon-head bolt  1
  M 6 X 70
14 944 106 929 08sealing ring  1
15 900 234 160 00shim  1
