Porsche 944 Wasser Kühlung Teile

Wasser Kühlung


Pos__Part_Number__DescriptionRemarkQty.Model

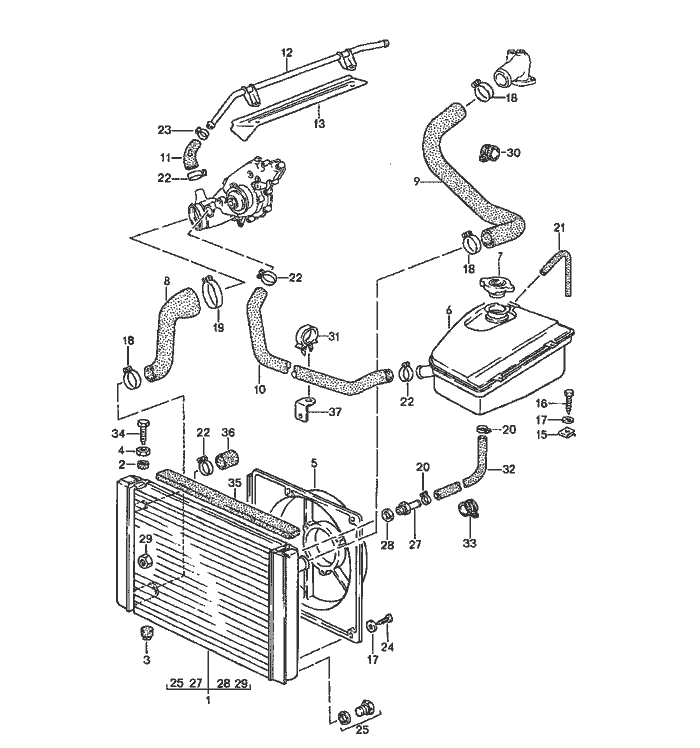

  water cooling   M44.11/12
1 944 106 031 03radiator  1
1 944 106 027 06radiator AUT. 1
2 951 106 053 00rubber mounting  2
3 951 106 107 00rubber mounting  2
4 900 076 025 02hexagon nut  2
5 944 106 143 02airscoop  1
  for
  air conditioner
6 944 106 125 06expansion tank  1
7 944 106 257 00lid  1
8 944 106 237 07water hose  1
9 944 106 239 07water hose  1
10 944 106 215 01water hose  1
11 944 106 241 03water hose  1
12 944 106 243 03water tube  1
13 944 106 247 00heat shield AUT. 1
15 477 955 461speed nut  2
16 N 090 172 1combination Schraube  2
  6,3 X 19
17 N 011 524 7washer  6
  A 6,4
18 999 512 500 00hose clamp  3
  32 -50
19 999 512 390 00hose clamp  1
  60 -80
20 900 272 002 02hose clamp  3
  10 -16
21 944 106 251 00water hose  1
22 999 512 392 00hose clamp  4
  23 -35

Pos__Part_Number__DescriptionRemarkQty.Model
23 999 512 346 00hose clamp 16 -25  1
24 900 187 111 02combination Schraube 6,3 X 12  4
25 944 106 353 01Schraube plug M 10 X 1  1
27 944 106 927 00Schraube socket  1
28 944 106 928 00sealing ring  1
29 944 106 355 00nut AUT. 2
30 999 511 130 02pipe clamp 44/20  1
31 321 971 847 Aclip  1
32 944 106 249 01water hose  1
33 999 511 177 02clamp B 15  1
34 900 046 004 02hexagon-head bolt  2
35 944 556 837 00sealing rubber  1
36 944 106 103 02cap  1
37 477 971 881 Bretaining bracket  1
