Porsche 944 L-jetronic Teile

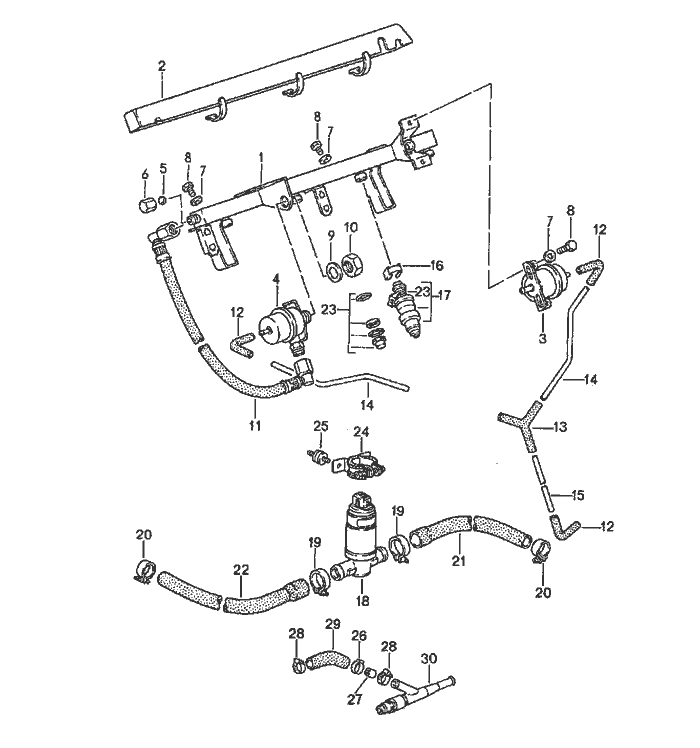

L Jetronic


Pos__Part_Number__DescriptionRemarkQty.Model
  l-jetronic   M44.11/12
  2
1 944 110 080 20fuel collection pipe  1
2 944 607 081 03cover  1
3 944 110 198 04pressure regulator  1
  M >> 46K 02979   M44.11
  M >> 46K 61255   M44.12
3 944 110 198 06pressure regulator  1
  M 46K 02980 >>   M44.11
  M 46K 61256 >>   M44.12
4 944 110 201 04diaphragm damper  1
5 900 108 022 00ball  1
6 928 110 475 01cap nut  1
7 N 011 524 7washer  4
8 999 072 005 09hexagon-head bolt  4
  M 6 X 12
9 N 012 238 5spring washer  1
10 900 034 013 02hexagon nut  1
  M 16 X 1,5
11 944 110 413 02fuel line  1
12 928 574 717 02moulded hose  X
13 928 573 727 03y-piece  X
-N 020 139 11pipe  *
  4 X 1
14 -180 MM  2
15 -380 MM  1
16 930 110 388 00retaining clip  4
17 944 606 114 00injector valve  4
18 930 606 161 00idle-speed adjuster  1
19 999 512 326 00hose clamp  2
  SGT 23 -35 / 9 W 2

Pos__Part_Number__DescriptionRemarkQty.Model
20 999 512 346 00hose clamp SGT 16 -25 / 9 W 2  2
21 944 110 214 01hose  1
22 944 110 217 00hose  1
23 944 110 901 00gasket set for injector valve  4
24 999 512 395 02clamp  1
25 928 110 191 10bonded rubber mounting  2
26 999 512 457 00clamp 18,2 -21,0  3
27 944 110 241 04restrictor  1
28 999 512 456 00clamp 19,8 -22,6  2
29 944 110 361 06hose  1
30 -see group 6/04/00
