Porsche 944 Motor Aufhängung Teile

Motor Aufhängung

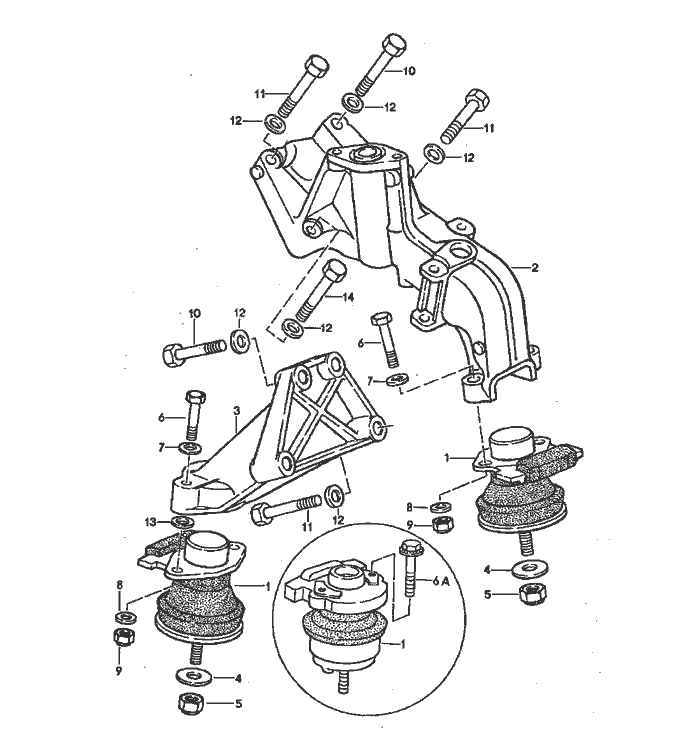

Pos__Part_Number__DescriptionRemarkQty.Model
  engine suspension    M44.52
  see technical information
  GRP.1 NR.4/90
1 951 375 042 04hydraulic mount   2
2 951 101 023 00engine carrier Left 1
3 944 375 124 02engine carrier Right 1
4 477 407 425washer   2
5 N 022 149 2lock nut   2
6 N 010 351 6hexagon-head bolt   4
  M 8 X 52
6A 900 378 024 02hexagon-head bolt   4
  M 8 X 38
(6A) 900 378 034 02hexagon-head bolt   4
  M 8 X 42
7 900 223 001 02washer   4
8 900 025 007 02washer   4
9 900 910 022 09lock nut   4
10 N 010 445 3hexagon-head bolt   4
  M 10 X 45
11 900 074 063 02hexagon-head bolt   2
  M 10 X 55
12 900 025 008 09washer   8
13 900 223 001 02washer   2
14 900 067 222 02pan-head Schraube   1
  M 10 X 55
