Porsche 944 Kraftstoff Tank Teile

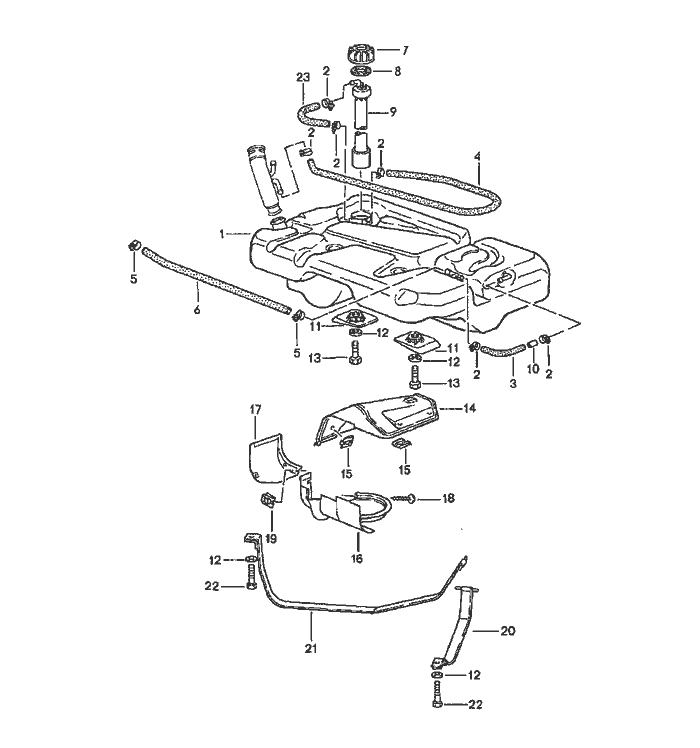

Kraftstoff Tank


Pos__Part_Number__DescriptionRemarkQty.Model
  fuel tank
1 951 201 021 03fuel tank   1
2 N 023 570 2hose clamp   6
-999 181 716 50hose   *
  9,5 X 3
3 -220 MM   1
4 -1900 MM   1 COUPE
4 941 201 713 11hose   1 CABRIO
5 999 512 482 00hose clamp   2
  SM 9C21-W3
6 951 201 123 03hose   1 COUPE
6 941 201 711 11hose   1 CABRIO
7 951 201 375 00union nut   1
8 944 201 327 00sealing ring   1
9 944 641 037 01tank gauge   1
10 911 201 263 02restrictor   1
11 951 201 173 02fastening plate   2
12 N 900 741 01washer   2
13 900 075 033 02hexagon-head bolt   2
  M 8 X 40
14 944 201 435 00heat protection plate   1
15 N 012 653 3lock washer   4
16 944 201 331 00cover   1
17 951 201 025 00lid   1
18 900 143 124 07tapping Schraube   2
19 N 015 482 1speed nut   2
20 951 201 315 00restraining strap Left-89 1
20 951 201 315 02restraining strap Left901

Pos__Part_Number__DescriptionRemarkQty.Model
21 951 201 312 01restraining strap Right-89 1
21 951 201 312 02restraining strap Right901
22 900 075 033 02hexagon-head bolt   2
  M 8 X 40   2
23 951 201 227 01hose   1
24 N 023 570 2hose clamp   1
  A 9 X 15 ZY
