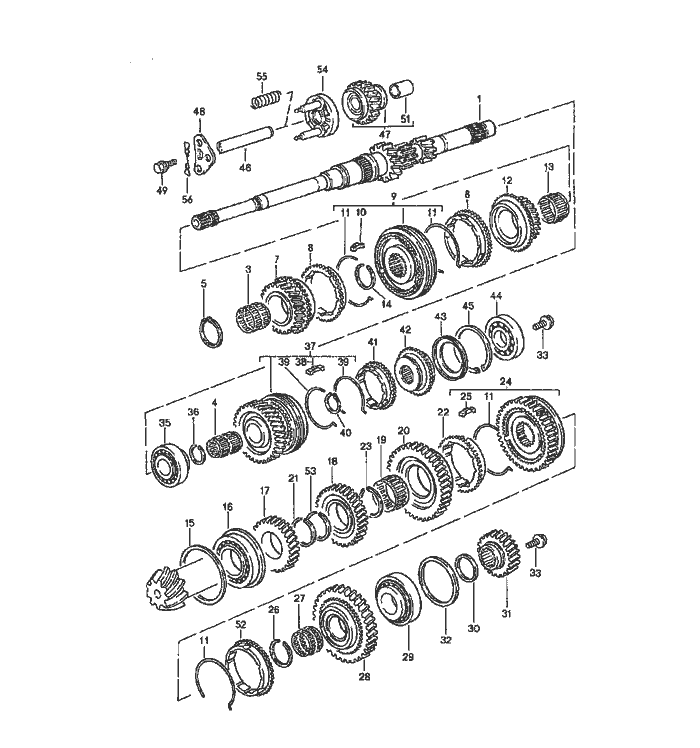

Porsche 944 Gears und Shafts Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		gears and shafts			ASG ASH
		for
		manual transmission
1	016 311 105 S	drive shaft		1
3	016 311 115	needle-roller bearing		1
		4th speed
4	016 311 116 A	needle-roller bearing		1
		5th gear
5	016 311 344	circlip		1
7	016 311 351 B	shifting gear		1
		4th speed
8	016 311 295	synchroniser ring		2
		3rd/4th gear
9	088 311 301 B	synchronising hub		1
		3rd/4th gear
		with
		operating sleeve
10	088 311 245	detent		3
		3rd/4th gear
11	088 311 311 D	spring		4
12	005 311 285	shifting gear		1
		3rd gear
13	016 311 213 H	needle-roller bearing		1
		3rd gear
14	088 311 317	circlip		1
		1,50
14	088 311 317 B	circlip		X
		1,56
14	088 311 317 C	circlip		X
		1,62
15	088 311 391	shim		1
		0,20
15	088 311 391 A	shim		X
		0,25
15	088 311 391 B	shim		X
		0,30

Pos	__Part_Number__	Description	Remark	Qty.	Model
15	088 311 391 C	shim		X
		0,35
15	088 311 391 D	shim		X
		0,40
15	088 311 391 E	shim		X
		0,65
15	088 311 391 F	shim		X
		0,90
15	088 311 391 G	shim		X
		1,15
16	016 311 220 E	taper roller bearing		1
17	016 311 149 H	gear wheel		1
		4th speed
18	016 311 131 E	gear wheel		1
		3rd gear
19	016 311 229 A	needle-roller bearing		1
		2nd gear
20	016 311 271	shifting gear		1
		2nd gear
21	016 311 363 AA	circlip		1
		2,24
21	016 311 363 AB	circlip		X
		2,26
21	016 311 363 AC	circlip		X
		2,28
21	016 311 363 AD	circlip		X
		2,30
21	016 311 363 AE	circlip		X
		2,32
21	016 311 363 AF	circlip		X
		2,34
21	016 311 363 AG	circlip		X
		2,36
21	016 311 363 AH	circlip		X
		2,38

Pos	__Part_Number__	Description	Remark	Qty.	Model
21	016 311 363 AJ	circlip		X
		2,40
22	016 311 295	synchroniser ring		1
		2nd gear
23	016 311 287	circlip		1
		1,65
23	016 311 287 A	circlip		X
		1,70
23	016 311 287 B	circlip		X
		1,75
24	016 311 239 E	synchronising hub		1
		1st/2nd gear
		with
		operating sleeve
25	088 311 313	detent		3
		1st/2nd gear
26	016 311 327	circlip		1
		1,50
26	016 311 327 A	circlip		X
		1,55
26	016 311 327 B	circlip		X
		1,60
27	016 311 207 A	needle-roller bearing		1
		1st gear
28	016 311 257	shifting gear		1
		1st gear
29	016 311 375 H	taper roller bearing		1
30	016 311 391	adjusting shim		1
		1,10
30	016 311 391 A	adjusting shim		X
		1,40
30	016 311 391 B	adjusting shim		X
		1,70
30	016 311 391 C	adjusting shim		X
		2,00

Pos	__Part_Number__	Description	Remark	Qty.	Model
30	016 311 391 D	adjusting shim		X
		2,30
31	016 311 159 C	gear wheel		1
		5th gear
32	016 311 393 AP	shim		1
		0,24
32	016 311 393 AQ	shim		X
		0,27
32	016 311 393 AR	shim		X
		0,30
32	016 311 393 AS	shim		X
		0,33
32	016 311 393 M	shim		X
		0,36
32	016 311 393 N	shim		X
		0,39
32	016 311 393 P	shim		X
		0,42
32	016 311 393 Q	shim		X
		0,45
32	016 311 393 R	shim		X
		0,69
32	016 311 393 S	shim		X
		0,93
32	016 311 393 T	shim		X
		1,17
32	016 311 393 AA	shim		X
		1,41
33	N 902 582 01	clamping Schraube		2
35	016 311 427	cylindrical-roller bearing		1
36	N 900 606 01	circlip		1
		A 27 X 1,35
36	N 900 606 02	circlip		X
		A 27 X 1,40

Pos	__Part_Number__	Description	Remark	Qty.	Model
36	N 900 606 03	circlip		X
		A 27 X 1,45
37	016 311 353 B	shifting gear		1
		5th gear
38	016 311 246	detent		3
		5th gear
39	014 311 311 C	spring		2
		5th gear
40	N 900 607 01	circlip		1
		A 27 X 1,9
41	014 311 295 E	synchroniser ring		1
		5th gear
42	016 311 192 A	clutch hub		1
		5th gear
43	016 311 449	dust plate		1
44	016 311 445	four-point bearing		1
45	N 900 608 01	circlip		1
		A 68 X 2,83
45	N 900 608 02	circlip		X
		A 68 X 2,90
46	016 311 519 B	reverse idler gear shaft		1
47	016 311 529 D	reverse idler gear		1
48	016 311 853 B	retainer plate		1
49	088 301 291 A	shouldered bolt		1
		M 8 X 16
51	088 311 533	bush		1
52	016 311 247	synchroniser ring		1
		1st gear
53	016 311 363 AJ	circlip		1
		2,40
54	016 311 839 C	synchroniser ring		1
55	016 311 859 C	compression spring		1
56	016 311 861 C	spring		1
