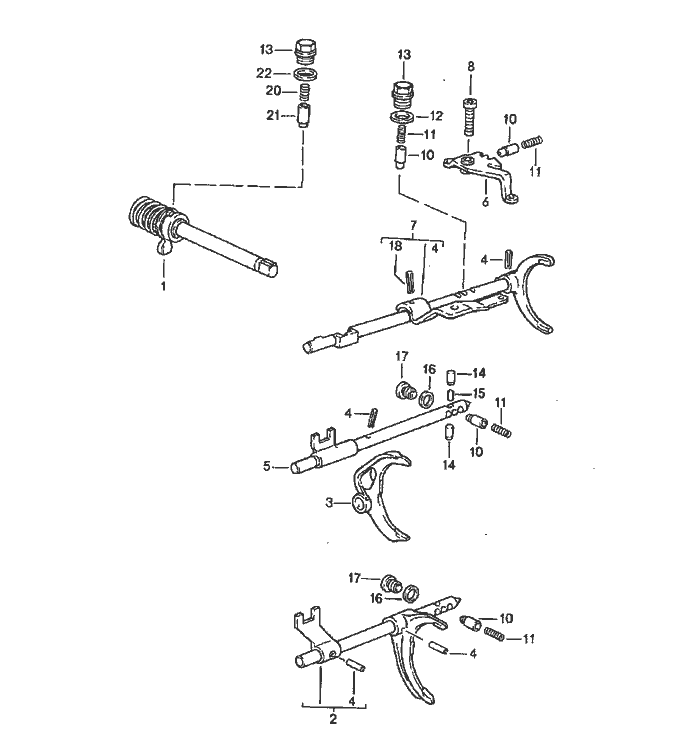

Porsche 944 Getriebe Control Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		transmission control			ASG ASH
		for
		manual transmission
1	016 311 475 G	shift rod		1
		ready for installation
2	016 311 549 A	shift fork		1
		1st gear
		and
		2nd gear
3	016 311 561 A	shift fork		1
		3rd gear
		and
		4th speed
4	N 900 073 01	tensioning sleeve		4
		6 X 22
5	016 311 567	gear shift rod		1
		3rd gear
		and
		4th speed
6	016 311 573 B	reverse lever		1
7	016 311 575 C	gear shift rod		1
		5th gear
		and
		reverse gear
8	084 311 589 B	pan-head Schraube		1
		M 10 X 32
10	084 311 621 D	bush		4
11	014 311 641 A	compression spring		4
12	900 123 140 30	sealing ring		1
		A 18 X 22
13	005 311 689	Schraube plug		1
14	014 311 629	detent		2
15	014 311 635	intermediate piece		1
16	* 088 311 599	sealing ring		2
17	088 311 721	stop Schraube		2

Pos	__Part_Number__	Description	Remark	Qty.	Model
18	N 013 336 1	tensioning sleeve		1
		6 X 26
20	016 311 735 A	compression spring		1
21	016 311 717 C	bush		1
22	* 005 311 599	sealing washer		1
