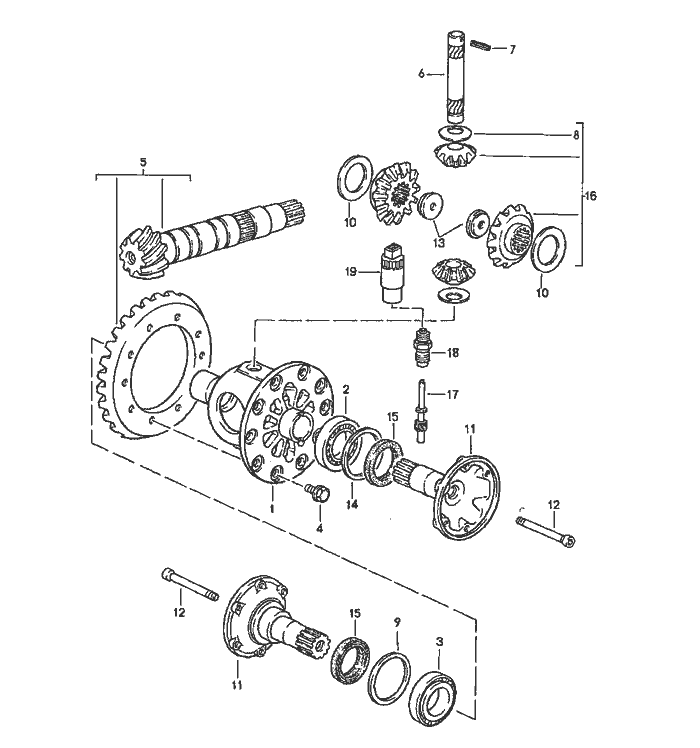

Porsche 944 Differential Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		differential
		for
		manual transmission
1	016 409 121 F	differential housing			1
(1)	016 409 121 G	differential housing			1	AOR
2	016 409 123	taper roller bearing	Left		1
3	113 517 185 C	taper roller bearing	Right		1
4	088 409 135 A	hexagon-head bolt			10
		M 10 X 18
5	016 409 143 BM	ring gear and pinion shaft			1	ASG ASH
		9 : 35
5	016 409 143 AQ	ring gear and pinion shaft			1	AOR
		8 : 27
5	016 409 143 BN	ring gear and pinion shaft			1	AOS AOT
						ASV ASW
		8 : 31
6	016 409 177 B	bolt			1
7	N 013 319 1	tensioning sleeve			1
		5 X 36
8	016 409 170	thrust washer			2
9	113 517 201 A	shim	Right		1
		0,15
9	113 517 202 A	shim	Right		X
		0,20
9	113 517 203 A	shim	Right		X
		0,30
9	113 517 204 A	shim	Right		X
		0,40
9	113 517 205 A	shim	Right		X
		0,50
9	113 517 206 A	shim	Right		X
		0,60
9	02A 409 210 A	shim	Right		X
		0,70

Pos	__Part_Number__	Description	Remark	Qty.	Model
9	02A 409 210 C	shim	Right		X
		0,80
9	02A 409 210 E	shim	Right		X
		0,90
9	02A 409 210 G	shim	Right		X
		1,00
9	113 517 211 A	shim	Right		X
		1,20
10	* 011 519 215	thrust washer			2
		0,50
10	088 409 249	thrust washer			X
		0,60
10	088 409 249 A	thrust washer			X
		0,70
10	088 409 249 B	thrust washer			X
		0,80
11	088 409 355 C	flanged shaft			2	ASG ASH
11	016 409 355 A	flanged shaft			2	AOR AOS
12	088 409 359	Schraube			2
13	016 409 161	nut			2
14	018 409 381	shim	Left		1
		0,15
14	018 409 383	shim	Left		X
		0,20
14	018 409 385	shim	Left		X
		0,25
14	018 409 387	shim	Left		X
		0,50
14	018 409 389	shim	Left		X
		0,80
14	018 409 391	shim	Left		X
		1,00
14	018 409 393	shim	Left		X
		1,50

Pos	__Part_Number__	Description	Remark	Qty.	Model
15	* 016 409 399 B	radial shaft seal		2
16	951 333 951 01	differential pinions		1
		1 set
17	088 409 197	speedometer pinion		1
18	014 409 193 A	bush		1
19	944 606 210 00	pulse sender		1
-	016 409 187	speedometer pinion		1
		drive wheel
