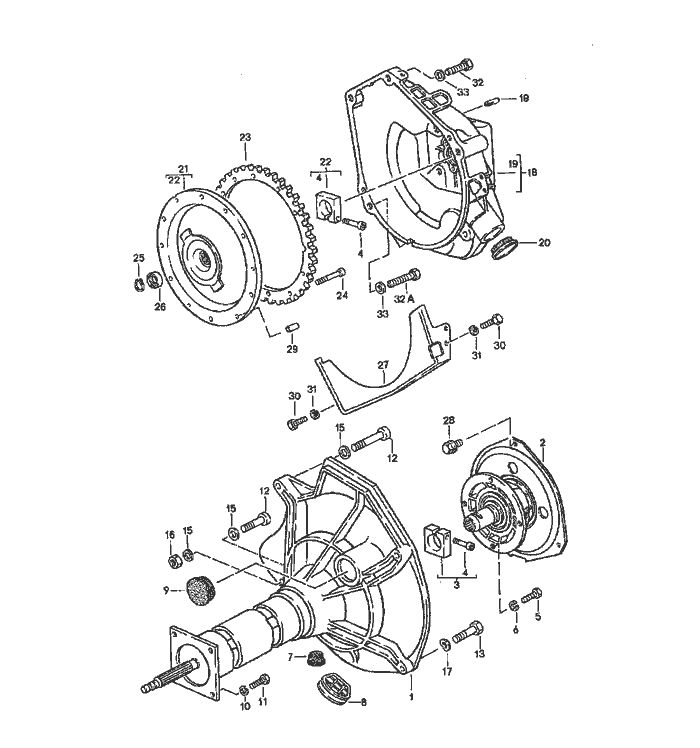

Porsche 944 Central Tube Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		central tube	-89		944
		for
		automatic transmission
1	944 421 107 03	central tube		1
2	944 421 110 00	converter mounting		1
3	922 421 239 02	clamping piece		1
4	931 421 240 00	clamping Schraube		2
5	900 075 029 09	hexagon-head bolt		4
		M 8 X 25
6	N 012 241 11	spring washer		4
		B 8
7	477 521 177	cap		1
8	477 521 277 C	cap		1
9	477 521 277 A	cap		1
10	900 027 016 02	lock ring		4
		B 10
11	N 010 275 4	hexagon-head bolt		4
		M 10 X 35
12	900 067 268 02	pan-head Schraube		3
		M 12 X 80
13	N 040 240 2	hexagon-head bolt		1
		M 10 X 50
14	900 028 014 02	spring washer		3
		B 12
15	N 011 531 7	washer		1
		A 13
16	N 011 020 8	hexagon nut		1
		M 12
17	900 025 008 09	washer		1
18	944 116 043 06	clutch housing		1
19	N 012 690 1	grooved pin		3
		10 X 32
20	931 116 177 00	cap		2

Pos	__Part_Number__	Description	Remark	Qty.	Model
21	944 116 065 02	damper		1
22	922 421 255 00	clamping piece		1
23	944 116 239 02	starter ring		1
24	N 014 717 2	pan-head Schraube		9
		M 8 X 40
25	900 273 002 01	circlip		1
		17 X 1
26	944 116 631 00	spacer sleeve		1
		1,00
26	944 116 631 01	spacer sleeve		X
		2,00
26	944 116 631 02	spacer sleeve		X
		3,00
26	944 116 631 03	spacer sleeve		X
		4,00
26	944 116 631 04	spacer sleeve		X
		5,00
26	944 116 631 05	spacer sleeve		X
		6,00
26	944 116 631 06	spacer sleeve		X
		7,00
26	944 116 631 07	spacer sleeve		X
		8,00
27	944 116 093 01	protective plate		1
28	003 323 699 A	hexagon-head bolt		3
29	999 095 019 00	clamping pin		2
		S 10 X 20
30	N 010 254 6	hexagon-head bolt		2
		M 10 X 25
31	N 012 028 1	lock ring		2
		A 10
32	N 010 142 2	hexagon-head bolt		2
		M 12 X 50

Pos	__Part_Number__	Description	Remark	Qty.	Model
32A	N	010 191 2	hexagon-head bolt		2
			M 12 X 95
33	N	011 531 7	washer		4
			A 13
