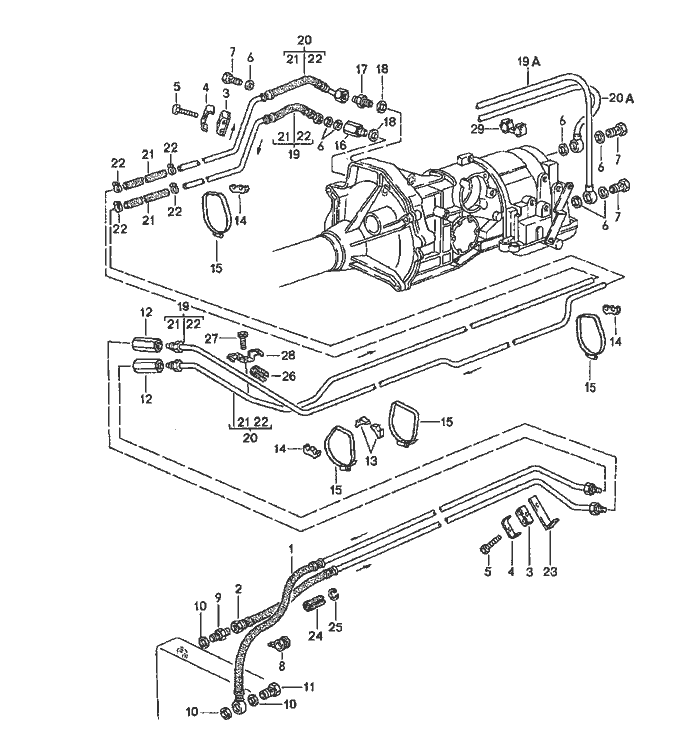

Porsche 944 Öl Kühlung Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		oil cooling	-89		944
		for
		automatic transmission
1	944 307 010 03	pressure line		1
2	944 307 011 01	return line		1
3	999 511 121 40	clip		3
4	928 347 455 00	shim		3
5	N 010 220 3	hexagon-head bolt		3
		M 6 X 30
6	900 123 043 30	sealing ring		3
		A 12 X 15,5
7	999 134 018 02	banjo bolt		1
		A 6
8	999 511 118 02	pipe clamp		1
		B 15
9	N 900 450 01	connection piece		1
		ALL 10
10	900 123 007 30	sealing ring		3
		A 14 X 18
11	900 134 007 02	banjo bolt		1
		A 8
12	477 209 169	connecting piece		2
13	477 723 567	support		2
14	944 307 190 00	support		3
15	999 512 350 02	hose clamp		4
		LA 80 -100
16	087 409 057	union		1
17	087 409 057 B	union		1
18	010 409 563 A	sealing ring		2
		A 16 X 2,5
19	944 307 004 03	pressure line		1
20	944 307 005 02	return line		1

Pos	__Part_Number__	Description	Remark	Qty.	Model
21	999 181 532 50	connecting hose		2
22	999 512 554 00	hose clamp		4
		LB 12 -22
23	944 107 237 00	support		2
24	922 307 121 00	hose piece		2
25	900 906 024 00	circlip		2
26	431 609 781	breather hose		2
27	N 010 215 13	hexagon-head bolt		1
		M 6 X 15
28	999 511 140 02	pipe clamp		1
