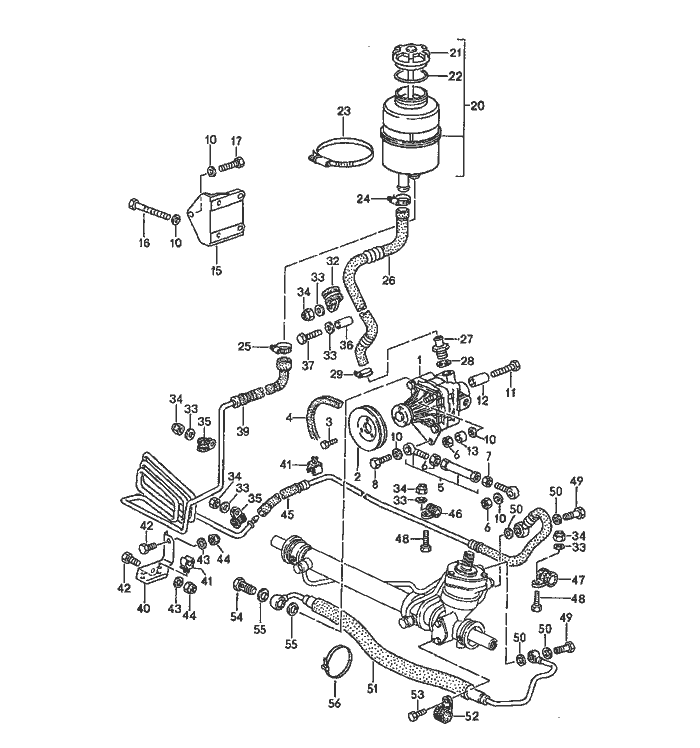

Porsche 944 Power Lenkung Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		power steering
		vane type pump
		lines
		see technical information
		GR4, NR.6/90
1	A 944 347 432 08	vane type pump		1
1	944 347 432 08	vane type pump		1
2	944 347 437 03	pulley		1
3	999 072 005 09	hexagon-head bolt		3
		M 6 X 12
4	999 192 236 50	narrow v-belt		1
		9,5 X 950
5	944 347 053 02	strut		1
6	900 076 025 02	hexagon nut		3
		M 8
7	N 011 008 24	hexagon nut		1
		M 8
		left
8	900 075 029 09	hexagon-head bolt		1
		M 8 X 25
10	900 025 007 02	washer		8
		A 8,4
11	N 010 359 4	hexagon-head bolt		1
		M 8 X 38
12	944 347 441 02	sleeve		1
		26 MM
13	944 347 442 00	dowel sleeve		1
		13 MM
15	944 101 147 01	bracket		1
16	N 010 361 4	hexagon-head bolt		4
		M 8 X 65
17	N 010 335 5	hexagon-head bolt		1
		M 8 X 35
20	928 347 015 05	oil tank		1

Pos	__Part_Number__	Description	Remark	Qty.	Model
21	928 347 925 00	lid			1
22	928 347 927 00	gasket			1
23	999 512 350 02	hose clamp			1
		$ 80-100 MM
24	999 512 346 02	hose clamp			1
		16-25
25	999 512 450 02	hose clamp			1
		12-20
26	944 347 445 05	moulded hose			1
27	999 230 357 02	connection piece			1
28	N 100 184 01	sealing ring			1
		16 X 20
29	999 512 346 00	hose clamp			2
		16 -25
33	N 011 524 7	washer			4
		A 6,4
34	900 910 012 02	lock nut			4
		M 6
35	999 511 116 02	clamp			2
		10 X 15
36	944 105 101 00	spacer sleeve			1	TURBO
37	N 014 715 3	pan-head Schraube			1	TURBO
		M 6 X 40
39	944 347 459 03	return line			1
40	944 347 465 02	support			1
41	944 347 467 00	cable clip			6
42	900 075 078 02	hexagon-head bolt			2
		M 8 X 15
43	900 025 007 02	washer			2
		A 8,4
44	900 084 004 02	hexagon nut			2
		M 8
45	944 347 449 06	return line	Left Hand Drive		1

Pos	__Part_Number__	Description	Remark	Qty.	Model
46	999 511 153 02	clip 8 X 15			1
47	N 020 626 2	clamp 16 X 15			1
48	900 075 016 02	hexagon-head bolt M 6 X 22			2
49	999 134 032 02	banjo bolt M 12 X 1,5	Left Hand Drive		2
50	900 123 026 20	sealing ring 12 X 15,5	Left Hand Drive		4
51	944 347 447 02	pressure line	Left Hand Drive		1
52	999 511 066 02	clamp 18 X 15			1
53	999 072 005 09	hexagon-head bolt M 6 X 12			1
54	900 134 007 02	banjo bolt A 8			1
55	900 123 042 20	sealing ring 14 X 18			2
56	999 513 010 40	tie-wrap 9 X 250			1
