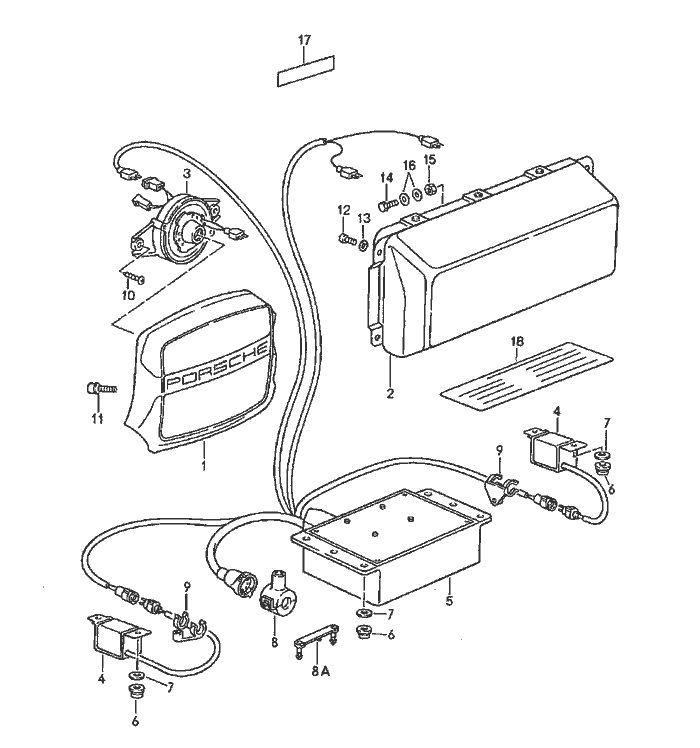

Porsche 944 Luftbag For Left-hand Drive Teile

Luftbag For Left Hand Drive


Pos__Part_Number__DescriptionRemarkQty.Model
  airbag for left-hand drive   M 562
1 944 347 989 06airbag unit driver's side set comprising: POS. 1 U. 11  1
 1AJblack
 7LDburgundy -90
 2JZmarine blue -90
 9WWcobalt blue 91
 7WHclassic grey 91
2 A 944 803 071 02airbag unit  1
2 944 803 071 02airbag unit passenger's side use also: POS.12  1 4
3 928 652 211 00support for contact  1
4 928 613 220 02front sensor 902
5 944 618 917 00switch unit  1
5 944 618 917 00control unit  1
5 944 618 217 01control unit  1 CABRIO
6 944 618 401 00nut M 6  4
7 N 011 524 7washer A 6,4  8
8 944 612 450 00support 89 1
8A 964 612 901 00securing clip blue 901
9 321 971 898 Bsupport  2
10 N 013 968 7tapping Schraube B 4,8 X 13  2

Pos__Part_Number__DescriptionRemarkQty.Model
11 999 073 025 02pan-head Schraube M 6 X 19 -89 2
(11) 999 073 030 02pan-head Schraube M 6 X 19 902
12 999 218 030 08pan-head Schraube M 6 X 10  4
13 N 011 524 7washer A 6,4  4
14 999 072 005 09hexagon-head bolt M 6 X 12  1
15 900 076 010 02hexagon nut M 6  1
16 N 011 666 7washer B 6,4  2
17 A 944 701 422 00sticker -89 1
17 A 944 701 422 02sticker 90 1
17 944 701 422 02sticker  1
18 944 701 421 01indication sticker airbag  1
