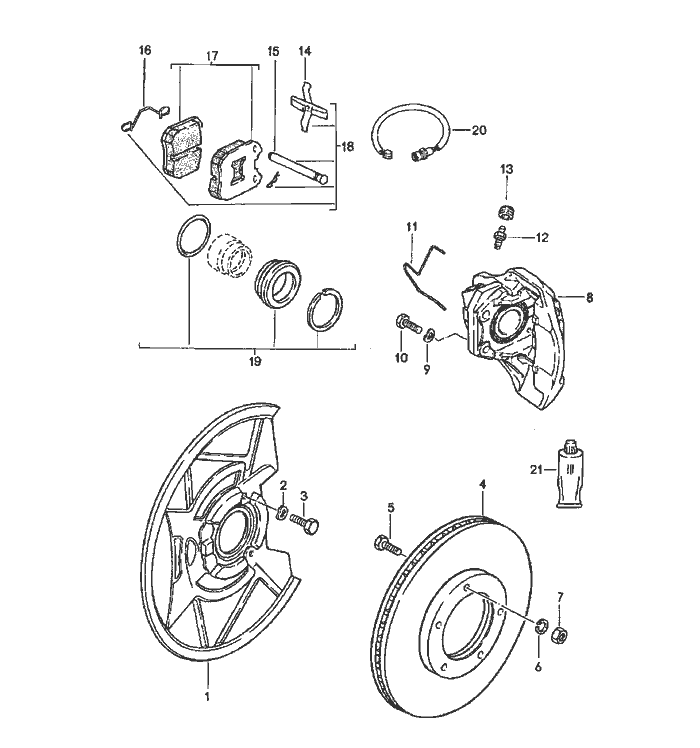

Porsche 944 Disc Bremse Teile

Disc Bremse


Pos__Part_Number__DescriptionRemarkQty.Model
  disc brake  -89  944
  front axle
1 944 351 085 00cover plate   2
2 N 012 234 5spring washer   6
  B 7
3 N 010 226 2hexagon-head bolt   6
  M 7 X 10
4 944 351 041 05brake disc   2
5 900 075 079 02hexagon-head bolt   10
  M 8 X 22
6 N 012 241 1spring washer   10
  B 8
7 900 076 025 02hexagon nut   10
  M 8
8 944 351 429 00floating calliper Left 1
8 944 351 430 00floating calliper Right 1
9 900 028 014 02spring washer   4
  B 12
10 N 040 108 1hexagon-head bolt   4
  M 12 X 1,5 X 40
11 431 615 169guide spring   2
12 944 351 957 00ventilation valve   2
13 944 351 959 00dust boot   2
14 * 928 351 935 00expanding spring   2
15 * 928 351 936 00retaining pin   4
16 * 928 351 955 00safety seal   2
17 944 351 951 02brake pad repair set   1
  without asbestos
18 944 351 952 01mounting parts   1
19 * 928 351 941 00gasket set   1
20 944 612 212 00warning contact   2

Pos__Part_Number__DescriptionRemarkQty.Model
21 000 043 117 00brake cylinder paste 1 50-g tube  X
