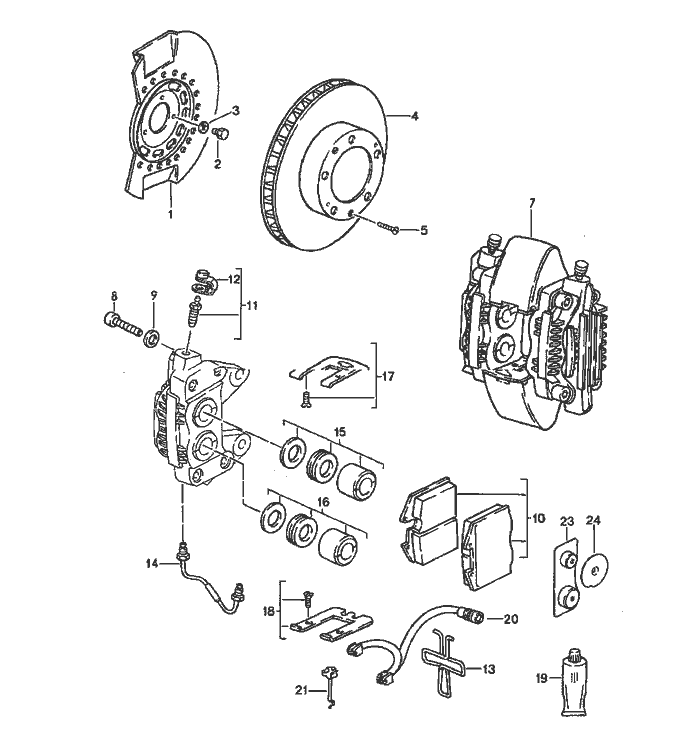

Porsche 944 Disc Bremse Vorder Achse Teile

Disc Bremse Vorder Achse


Pos__Part_Number__DescriptionRemarkQty.Model
  disc brake front axle    944S2/TURBO
  see technical information GR.4, NR.1/89 GR.4, NR.1/93
1 951 351 085 03cover plate Left 1
(1) 951 351 086 03cover plate Right 1
2 N 010 226 2hexagon-head bolt M 7 X 10   6
3 N 012 234 5spring washer   6
4 A 951 351 041 02brake disc   2 944S2
4 951 351 041 02brake disc   2 944S2
(4) 928 351 043 60brake disc Left901 TURBO 944S2 M 030
(4) 928 351 044 60brake disc Right901 TURBO 944S2 M 030
5 N 033 167 1countersunk-head Schraube M 6 X 12   4
7 951 351 421 01fixed calliper with scraper ring piston $ 36/40 F >>94KN4 51880 Left 1 944S2
7 951 351 421 03fixed calliper with protection cap piston $ 36/40 F 94KN4 51881>> Left 1 944S2
7 951 351 093 00fixed calliper with scraper ring piston $ 36/44 Left 1 TURBO

Pos__Part_Number__DescriptionRemarkQty.Model
7 928 351 421 03fixed calliper with protection cap piston $ 36/44 Left901 TURBO 944S2 M 030
(7) 951 351 422 01fixed calliper with scraper ring piston $ 36/40 F >>94KN4 51880 Right 1 944S2
(7) 951 351 422 03fixed calliper with protection cap piston $ 36/40 F 94KN4 51881>> Right 1 944S2
(7) 951 351 094 00fixed calliper with scraper ring piston $ 36/44 Right 1 TURBO
(7) 928 351 422 03fixed calliper with protection cap piston $ 36/44 Right901 TURBO 944S2 M 030
8 N 010 137 2hexagon-head bolt M 12 X 1,5 X 35   4 944S2
8 900 067 154 02pan-head Schraube M 12 X 1,5 X 70  904 TURBO 944S2 M 030
9 900 028 014 02spring washer B 12   4 944S2
9 N 011 564 2washer   4 TURBO
  B 13  90 944S2 M 030
10 A 951 351 939 08brake pad repair set   1 944S2
10 951 351 939 08brake pad repair set without asbestos use also:   1 944S2
  POS.(24)
10 A 993 351 939 01brake pad repair set   1 TURBO

Pos__Part_Number__DescriptionRemarkQty.Model
10 993 351 939 01brake pad repair set without asbestos use also:  1 TURBO 944S2 M 030
  POS.(23)
11 930 351 919 00ventilation valve  4
12 930 351 927 00dust boot  4
13 951 352 950 00expanding spring  2 944S2
13 928 351 950 01expanding spring 902 TURBO 944S2 M 030
14 951 351 971 00connecting line  2 944S2
14 928 351 971 00connecting line 902 TURBO 944S2 M 030
15 951 351 919 02gasket set with  2 944S2
  scraper ring $ 40
  F >>94KN4 51880
15 951 351 919 11gasket set with  2 944S2
  protection cap $ 40
  F 94KN4 51881>>
15 928 351 919 01gasket set with  2 TURBO
  scraper ring $ 44
15 928 351 919 10repair kit with protection cap $ 44 902 TURBO 944S2 M 030
16 951 351 919 01gasket set with  2 944S2
  scraper ring $ 36 F >>94KN4 51880
16 951 351 919 10repair kit with  2 944S2
  protection cap $ 36 F 94KN4 51881>>

Pos__Part_Number__DescriptionRemarkQty.Model
16 951 351 919 01gasket set with scraper ring $ 36  2 TURBO
16 951 351 919 10repair kit with 902 TURBO 944S2 M 030
  protection cap $ 36
17 964 351 959 01repair kit spring plate  2 944S2
17 993 351 959 01repair kit spring plate 902 TURBO 944S2 M 030
18 964 351 959 00repair kit spring plate  2 944S2
18 993 351 959 00repair kit spring plate 902 TURBO 944S2 M 030
19 000 043 020 00optimoly TA  X
  1 100-gramme tube
(19) 000 043 117 00brake cylinder paste 1 50-g tube  X
20 944 612 365 01warning contact use also:  2
21 928 612 361 00cable holder  2
22 951 341 705 00cable holder  2
23 951 351 089 04vibration damper for fixed calliper with  4 TURBO
  scraper ring $ 25,2/33,8
23 951 351 089 03vibration damper for fixed calliper with 904 TURBO 944S2 M 030
  protection cap $ 19,7/27,3

Pos__Part_Number__DescriptionRemarkQty.Model
24 928 351 096 19damping plate for  4 944S2
  piston with
  scraper ring $ 36
  F >>94KN4 51880
24 951 351 096 00damping plate for  4 944S2
  piston with
  scraper ring $ 40
  F >>94KN4 51880
24 964 351 096 01damping plate for  4 944S2
  piston with
  protection cap $ 36
  F 94KN4 51881>>
24 964 351 096 02damping plate for  4 944S2
  piston with
  protection cap $ 40
  F 94KN4 51881>>
