Porsche 944 Disc Bremse Hinter Achse Teile

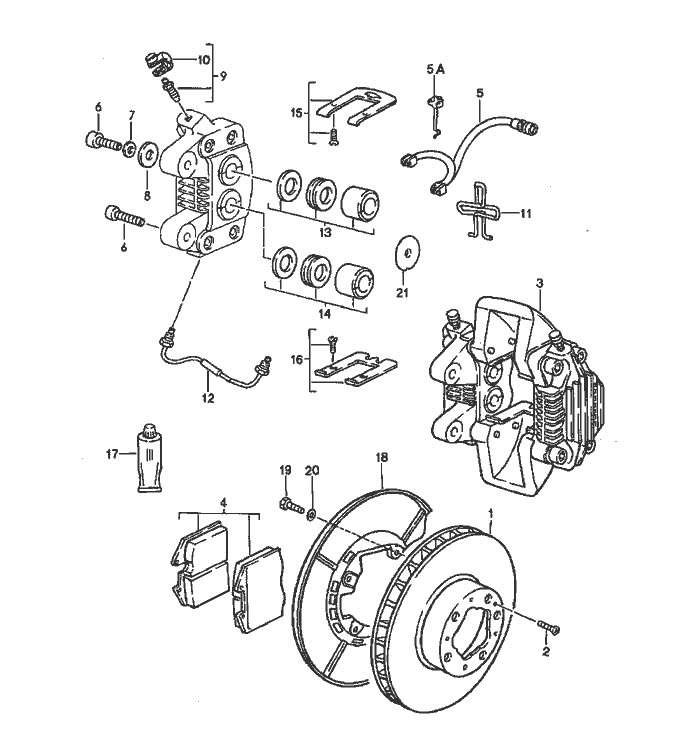

Disc Bremse Hinter Achse


Pos__Part_Number__DescriptionRemarkQty.Model
  disc brake rear axle    944S2/TURBO
  see technical information
  GR.4, NR.1/89 GR.4, NR.1/93
1 951 352 041 02brake disc   2
2 N 033 167 1countersunk-head Schraube   2
  M 6 X 12
3 951 352 421 00fixed calliper with Left 1 TURBO
  scraper ring piston $ 28/30 F >>95KN1 50215
3 951 352 421 02fixed calliper with Left 1 944S2/TURBO
  protection cap piston $ 28/30 F 95KN1 50216>>
(3) 951 352 422 00fixed calliper with Right 1 TURBO
  scraper ring piston $ 28/30 F >>95KN1 50215
(3) 951 352 422 02fixed calliper with Right 1 944S2/TURBO
  protection cap piston $ 28/30 F 95KN1 50216>>
4 A 951 351 939 08brake pad repair set   1 944S2
4 951 351 939 08brake pad repair set without asbestos   1 944S2
  use also:
  POS. (21)
4 965 352 939 04brake pad repair set without asbestos   1 TURBO 944S2 M 030
  use also:
  POS. (21)

Pos__Part_Number__DescriptionRemarkQty.Model
5 944 612 365 01warning contact use also:  2
5A 928 612 361 00cable holder  2
6 N 040 108 1hexagon-head bolt M 12 X 1,5 X 40  4
7 900 028 014 02spring washer B 12  4
8 999 025 131 01spacer  4
9 930 351 919 00ventilation valve  4
10 930 351 927 00dust boot  4
11 951 352 950 00expanding spring  2
12 951 352 971 00connecting line  2
13 951 352 919 11gasket set with protection cap $ 30  2 944S2
13 951 352 919 00gasket set with scraper ring $ 30 F >>95KN1 50215  2 TURBO
13 951 352 919 11gasket set with protection cap $ 30 F 95KN1 50216>>  2 TURBO
14 951 352 919 10gasket set with protection cap $ 28  2 944S2
14 951 352 919 01repair kit with scraper ring $ 28 F >>95KN1 50215  2 TURBO

Pos__Part_Number__DescriptionRemarkQty.Model
14 951 352 919 10gasket set with protection cap $ 28  2 TURBO
  F 95KN1 50216>>
15 993 352 959 01repair kit spring plate  2
16 993 352 959 00repair kit spring plate  2
17 000 043 020 00optimoly TA  X
  1 100-gramme tube
(17) 000 043 117 00brake cylinder paste  X
  1 50-g tube
18 A 964 352 801 00protective plate  2
(18) 964 352 801 00protective plate  2
19 999 072 005 09hexagon-head bolt M 6 X 12  8
20 N 012 226 5spring washer  8
21 928 352 096 10damping plate for piston with  4 TURBO
  scraper ring $ 30 F >>95KN1 50215
21 928 352 096 11damping plate for  4 TURBO
  piston with scraper ring $ 28
  F >>95KN1 50215
21 964 352 096 00damping plate for  4 TURBO 944S2
  piston with
  protection cap $ 30 F 95KN1 50216>>

Pos__Part_Number__DescriptionRemarkQty.Model
21 964 352 096 01damping plate for piston with protection cap $ 28 F 95KN1 50216>>  4 TURBO 944S2
