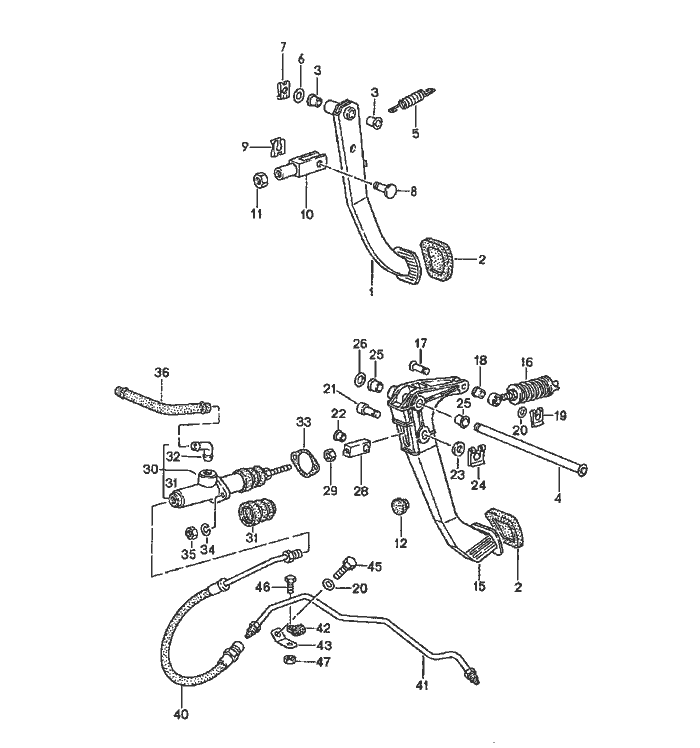

Porsche 944 Bremse Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		brake
		clutch
		pedals
		left-hand drive
1	944 423 051 03	brake pedal		1
(1)	944 423 051 04	brake pedal	-89	1	AUT.
2	321 721 173	pedal cap		2
(2)	827 723 173	pedal cap	-89	1	AUT.
3	999 924 003 40	bush		2
		12 X 13,6
4	N 023 152 1	bolt	89	1	944
4	951 423 061 01	bolt	89	1	944S2/TURBO
					944 M 593
4	944 423 085 00	bolt	90	1
4	N 023 151 2	bolt	-89	1	AUT.
4	944 423 061 06	bolt	-89	1	AUT. M 593
5	321 721 191	return spring		1
6	311 955 255	washer		2
7	999 166 077 02	safety clip		1
8	999 088 010 02	bolt		1
		10 X 28 X 23,5
9	999 021 001 07	connector		1
10	999 166 061 30	clevis		1
11	N 011 010 6	hexagon nut		1
		M 10
12	999 703 183 40	buffer		1
15	944 423 937 01	clutch pedal	89	1	944
15	951 423 037 00	clutch pedal	89	1	944S2/TURBO
15	944 423 038 02	clutch pedal	90	1
16	477 721 353 A	clutch power spring	89	1	944

Pos	__Part_Number__	Description	Remark	Qty.	Model
16	951 423 053 02	clutch power spring	89	1	944S2/TURBO
16	951 423 053 10	clutch power spring	90	1	944S2/TURBO
17	999 088 019 02	bolt	90	1
18	999 924 001 40	bush		1
19	N 900 470 01	lock washer	89	1
19	999 166 075 02	safety clip	90	1
20	900 025 007 02	washer		2
		A 8,4
21	944 423 387 00	bolt	90	1
22	999 924 002 40	plain bearing		1
23	N 011 524 7	washer		1
		A 6,4
24	999 166 034 02	sl-lock	89	1
24	999 166 076 02	safety clip	90	1
25	999 201 021 00	needle sleeve	89	2
25	999 924 039 00	bush	90	2
26	311 955 255	washer		X
28	928 423 517 00	clevis		1
29	900 076 025 02	hexagon nut	89	1
		M 8
29	N 011 118 11	hexagon nut	90	1
		M 8
30	477 721 171	clutch master cylinder	89	1
30	944 423 149 00	clutch master cylinder	90	1
31	928 423 908 00	bellows		1
32	477 721 177	angled pipe		1
33	928 423 191 00	gasket		1
34	900 027 015 02	lock ring		2
		B 8

Pos	__Part_Number__	Description	Qty.	Model
35	900 076 025 02	hexagon nut M 8	2
-	999 181 021 50	hose 12,5 X 7,5	*
36	-	270 MM	1
40	477 721 189 A	clutch hose	1	944/944S2
(40)	951 423 189 01	clutch hose	1	TURBO
41	944 423 091 00	clutch pipeline	1	944/944S2
(41)	951 423 091 11	clutch pipeline	1	TURBO
42	N 020 680 1	clamp	2
43	944 423 193 01	support	1	944/944S2
(43)	951 423 193 00	support	1	TURBO
45	N 010 239 11	hexagon-head bolt M 8 X 18	1
46	N 010 205 6	hexagon-head bolt M 5 X 10	2
47	N 011 005 14	hexagon nut M 5	2
