Porsche 944 Body Vorder Section Teile

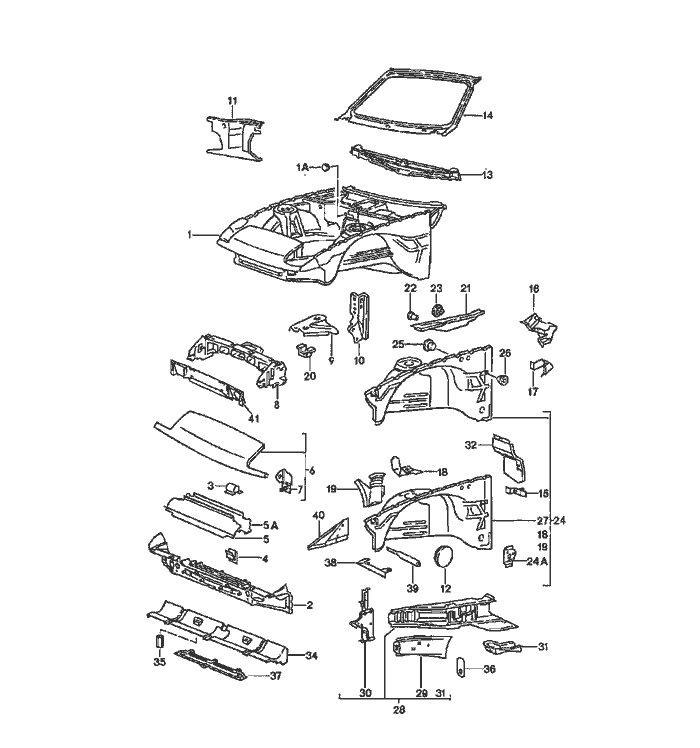

Body Vorder Section


Pos__Part_Number__DescriptionRemarkQty.Model
  body front section
1 951 501 011 39body front section Left Hand Drive 1 COUPE
1 951 501 011 39body front section Left Hand Drive 1 CABRIO
(2) 944 502 051 04end plate   1
  with
  cross member
3 999 591 852 02clamp   5
4 477 819 212clamp   4
5 944 575 321 00air duct  -89 1 944
5A 951 504 321 01air duct   1 944S2,TURBO
6 944 503 033 02end plate  -89 1 944
(6) 951 503 033 00end plate   1 944S2,TURBO
(7) 951 503 069 00bracket Left 1
(7) 951 503 070 00bracket Right 1
8 951 501 025 03lock carrier   1
 GRVprime coated
9 477 805 699 Acorner plate Left 1
10 477 805 057 Areinforcement Left 1
(10) 477 805 058 Areinforcement Right 1
11 951 502 201 00firewall Left 1
(11) 951 502 202 01firewall Right 1
12 944 504 217 00lid   1 944S2
(12) 944 110 195 00bellows   1 TURBO
13 944 502 079 03cross member   1
14 944 502 911 01windscreen frame   1
18 944 501 094 01support   1
  ignition coil
19 944 501 292 00support   1
  expansion tank

Pos__Part_Number__DescriptionRemarkQty.Model
20 477 805 693support  1
  horn
21 944 502 119 03side member Left Hand Drive \/ Left Side1
  upper
21 944 502 120 03side member Left Hand Drive \/ Right Side1
  upper
22 311 881 945 Astopper Right2
23 803 803 583 Alid  6
(24) 944 501 901 04wheel housing Left1
(24) 944 501 902 04wheel housing Left Hand Drive \/ Right Side1
24A 944 502 071 00mounting  1
25 999 703 103 40stopper Left2
26 999 703 179 40stopper  X
27 944 501 101 02wheel housing Left1
(27) 944 501 102 02wheel housing Right1
28 951 501 017 00side member Left1
(28) 951 501 018 00side member Right1
29 944 501 081 00filler plate Left1
(29) 944 501 082 00filler plate Right1
30 951 501 045 00separator Left1
(30) 951 501 046 00separator Right1
31 951 501 165 00closing element Left1
(31) 951 501 166 00closing element Right1
32 944 504 112 00water protection  1 M 593
34 944 575 121 02cooling air duct -89 1 944
35 999 049 001 40plastic nut  8
37 951 501 251 00bracket -89 1 944
(37) 951 501 251 00bracket  1 944S2,TURBO

Pos__Part_Number__DescriptionRemarkQty.Model
38 944 503 525 02support Left 1
 GRVprime coated
(38) 944 503 526 00support Right 1
 GRVprime coated
39 944 503 523 00support Left 1
 GRVprime coated
(39) 944 503 524 00support Right 1
 GRVprime coated
40 944 501 461 00supporting plate Left 1
(40) 951 501 862 00supporting plate Right 1
41 944 575 008 00air duct   1 944S2
-944 501 097 00support for ignition switch unit   1
