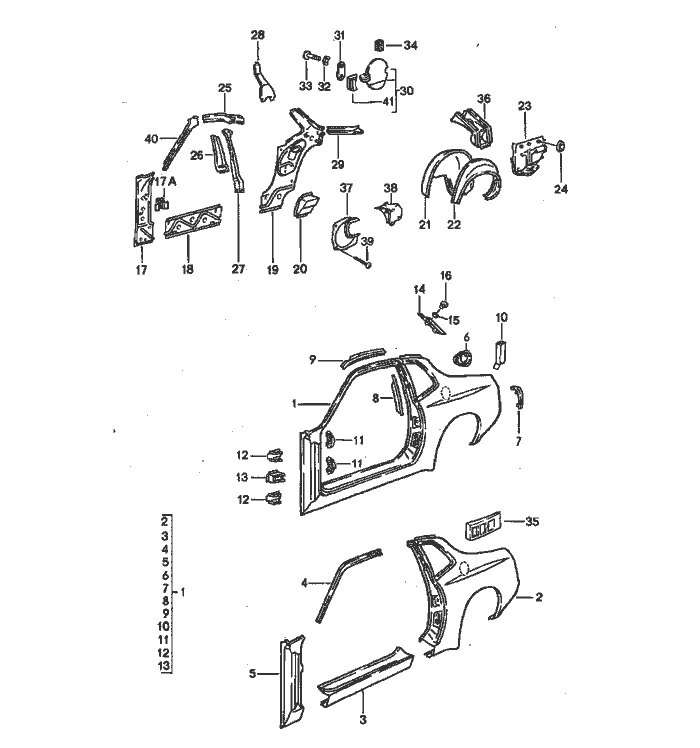

Porsche 944 Side Section Teile

Side Section


Pos__Part_Number__DescriptionRemarkQty.Model
  side section    COUPE
(1) 944 503 061 09side section Left-90 1
  it is necessary to rework    TURBO
(1) 944 503 061 09side section Left911
(1) 944 503 062 05side section Right-90 1
  it is necessary to rework    TURBO
(1) 944 503 062 09side section Right911
(2) 944 503 903 03side section Left-90 1
  outer
  it is necessary to rework    TURBO
(2) 944 503 903 03side section Left911
  outer
(2) 944 503 904 03side section Right-90 1
  outer
  it is necessary to rework    TURBO
(2) 944 503 904 03side section Right911
  outer
3 944 503 611 00door sill Left 1
(3) 944 503 612 00door sill Right 1
4 944 503 517 00roof frame Left 1
(4) 944 503 518 00roof frame Right 1
5 944 503 605 01hinge pillar Left 1
(5) 944 503 606 01hinge pillar Right 1
6 944 503 068 00pot   1
  tank filler neck
7 477 809 375 Abracket for light Left 1
(7) 477 809 376 Abracket for light Right 1
8 477 809 445reinforcement Left 1
(8) 477 809 446reinforcement Right 1
9 477 809 585filler plate Left 1
(9) 477 809 586filler plate Right 1

Pos__Part_Number__DescriptionRemarkQty.Model
(10) 944 501 217 00supporting plate   2
  lid
  boot floor lining
11 477 809 653mounting plate   4
12 477 809 655hinge reinforcement   4
13 477 809 625reinforcement   2
14 944 503 097 00reinforcement Left 1
(14) 944 503 098 00reinforcement Right 1
15 928 504 355 02gasket   4
16 999 015 005 07half-round Schraube   4
17 477 809 393 Ahinge pillar Left 1
  use also:
  POS.17A /LL  1
(17) 477 809 394 Ahinge pillar Right 1
17A 944 502 373 00mounting   1
  switch
  rear lid release
18 477 809 433separator   2
19 944 502 901 04side section Left-90 1
  order also:
  POS.37   1
  POS.39   3
  M490:
  POS.38   1
  POS.39   4
19 944 502 901 04side section Left911
  order also:
  POS.37   1
  POS.39   3
  M490:
  POS.38   1
  POS.39   4
(19) 944 502 902 04side section Right-90 1
  order also:
  POS.(37)   1
  POS.39   3
  M490:
  POS.(38)   1
  POS.39   4

Pos__Part_Number__DescriptionRemarkQty.Model
(19) 944 502 902 04side section /R 911
  order also:
  POS.(37)  1
  POS.39  3
  M490:
  POS.(38)  1
  POS.39  4
20 931 502 387 01corner plate Left1
(20) 931 502 388 01corner plate Right1
21 944 501 043 00wheel housing Left1
(21) 944 501 044 01wheel housing Right1
22 931 502 411 01wheel housing Left1
  it is necessary to rework   TURBO
(22) 931 502 412 01wheel housing Right1
  it is necessary to rework   TURBO
23 944 502 025 00side section Hinter Left1
(23) 944 502 026 01side section Right1
24 803 803 583drain bush  X
(24) 021 119 569rubber sleeve  X M 650
25 477 809 037separator Left1
(25) 477 809 038separator Right1
26 477 809 397centre pillar Left1
(26) 477 809 398centre pillar Right1
27 944 502 049 00reinforcement Left1
(27) 944 502 050 00reinforcement Right1
28 477 809 427closing element Left1
(28) 477 809 428closing element Right1
29 944 502 439 00reinforcement Left1
(29) 944 502 440 01reinforcement Right1

Pos__Part_Number__DescriptionRemarkQty.Model
30 944 504 095 00flap   1 COUPE
  flap   1 CABRIO
  see group
  8/02/25
31 944 504 403 00desk pad   X
32 N 012 222 4spring washer   2
  A 5
33 900 146 106 07oval-head Schraube   2
  M 5 X 12
34 944 504 397 00stop   1
(35) 944 555 275 01filler piece Left 1
(35) 944 555 276 00filler piece Right 1
36 951 201 049 00cover   1
  lower part
  filler neck
37 944 504 621 00adapter Left 1
  for
  loudspeaker
(37) 944 504 622 00adapter Right 1
  for
  loudspeaker
38 944 504 611 01adapter Left 1 M 490
  for
  loudspeaker
(38) 944 504 612 01adapter Right 1 M 490
  for
  loudspeaker
39 N 090 114 1tapping Schraube   8
  B 3,9 X 9,5
40 944 502 041 00side section Left 1
  inner
(40) 944 502 042 00side section Right 1
  inner
41 944 504 391 00hinge   1
