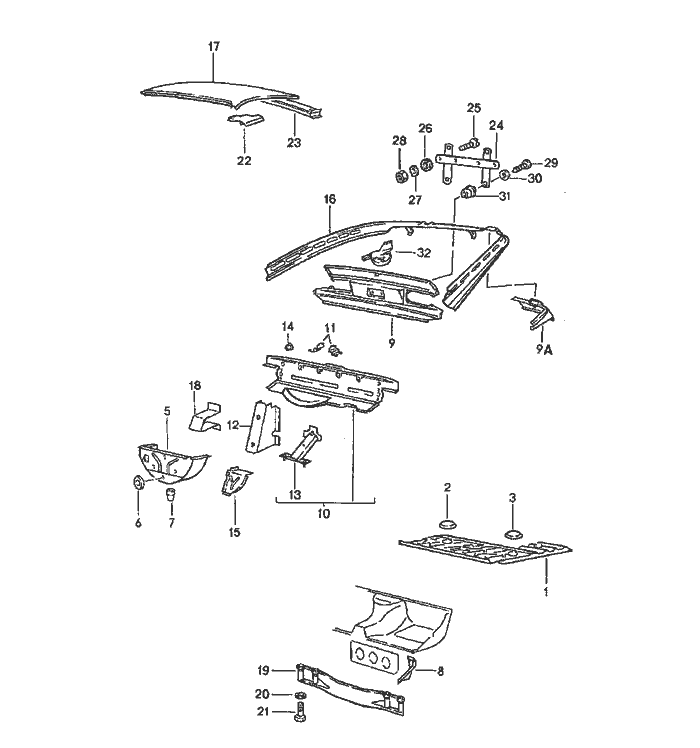

Porsche 944 Getriebe Carrier Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		transmission carrier
		boot floor plate
		roof
1	951 501 075 00	boot floor plate			1
2	944 504 207 00	lid			1
		tank gauge
3	411 803 595	lid			1
		136 MM $
5	951 501 131 00	spare-wheel well	Vorder	-89	1
5	951 501 131 02	spare-wheel well	Vorder	90	1
6	803 803 583	drain bush			3
7	111 701 309	rubber sleeve			1
8	477 813 145 B	corner panel	Left		1
(8)	477 813 146 B	corner panel	Right		1
9	944 503 037 01	end plate			1
9A	944 502 345 01	reinforcement	Left		1
(9A)	944 502 346 01	reinforcement	Right		1
10	944 503 901 01	end plate			1
		use also:
		cap			1
		999.703.179.40
11	477 813 169	fastening angle	Left		1
		scissors type jack
(11)	477 813 170	fastening angle	Right		1
		scissors type jack
12	944 503 165 01	support			1
13	944 502 091 00	support			1
		rear muffler
14	999 703 179 40	stopper			1
14	999 703 179 40	stopper	Hinter		1
15	477 813 309	corner panel	Left		1
(15)	944 502 210 00	corner panel	Right		1

Pos	__Part_Number__	Description	Remark	Qty.	Model
16	944 502 035 02	lock carrier	Hinter		1
17	944 503 912 02	roof			1
17	944 503 912 03	roof			1	M 650
18	944 503 171 00	support for spare wheel			2
19	477 813 285	transverse strut			1
		seat well
20	900 074 181 02	Schraube			4
		M 10 X 95
21	900 025 008 09	washer			4
		10,5
22	477 817 033	reinforcement	Vorder Left		1
(22)	477 817 034	reinforcement	Vorder Right		1
23	477 817 171 A	roof frame			1
24	928 701 050 03	support			1	(USA)(J)(CH)
25	N 014 143 1	oval-head Schraube			2
		AM 6 X 22
(25)	N 100 457 01	countersunk-head Schraube			2	(USA)(J)(CH)
		M 5 X 25
26	803 011 243	rubber washer			2
(27)	N 011 665 3	washer			2	(USA)(J)(CH)
		A 5,3
28	900 910 009 02	lock nut			2	(USA)(J)(CH)
		M 5
29	900 143 134 00	tapping Schraube			4	(USA)(J)(CH)
		BZ 4,2 X 9,5
30	N 011 522 8	washer			4	(USA)(J)(CH)
		4,3
31	999 591 498 40	special nut			4	(USA)(J)(CH)
32	944 501 207 01	retaining bracket			1
		electric motor
