Porsche 944 Bumper Teile

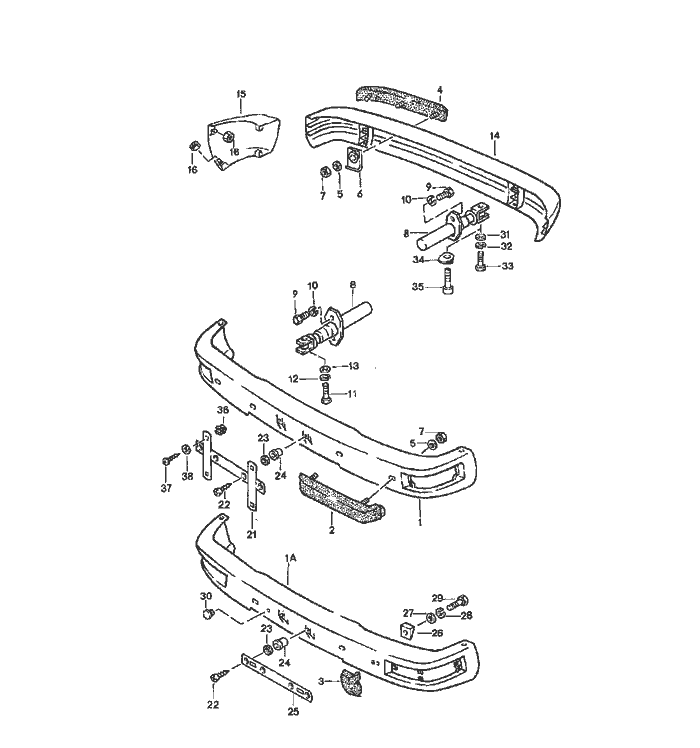

Bumper


Pos__Part_Number__DescriptionRemarkQty.Model
  bumper
  with
  impact absorber
1 931 505 109 04bumper Vorder 1 M 036
(1) 931 505 109 07bumper Vorder 1 M 036/288
1A 931 505 109 05bumper Vorder 1 M 058
(1A) 931 505 109 06bumper Vorder 1 M 058/288
2 477 807 155 Arubber moulding Left 1 M 036
(2) 477 807 156 Arubber moulding Right 1 M 036
3 477 807 353bumper horn Left 1 M 058
(3) 477 807 354bumper horn Right 1 M 058
(4) 944 505 061 00rubber moulding Left 1
4 944 505 062 00rubber moulding Right 1
5 N 011 612 3washer   6 M 058
  R 7
5 N 011 612 3washer   10 M 036
  R 7
6 477 807 197support Hinter 6
7 113 101 175hexagon nut   6 M 058
7 113 101 175hexagon nut   10 M 036
8 944 505 017 03impact absorber   4
9 N 010 240 16hexagon-head bolt   8
  M 8 X 20
10 900 027 015 02lock ring   8
  A 8
11 N 010 165 2hexagon-head bolt Vorder 2
  M 12 X 65
12 N 012 042 4lock ring Vorder 2
  B 12
13 N 011 531 7washer Vorder 2
  A 13

Pos__Part_Number__DescriptionRemarkQty.Model
14 944 505 301 00bumper Hinter
(15) 931 505 059 00cover Left 1
  prime coated
15 931 505 060 00cover Right 1
  prime coated
16 900 910 007 02lock nut   4
  M 5
21 928 701 050 03support   1 M 036
22 N 043 983 1tapping Schraube   2
  B 5,5 X 32
23 944 505 351 00spacer rubber   2
24 N 902 508 01special nut   2
25 911 701 121 03support   1 M 058
26 477 807 361plate Left 1 M 058
(26) 477 807 362plate Right 1 M 058
27 N 011 652 1washer   2 M 058
  7
28 N 012 006 4lock ring   2 M 058
  B 6
29 N 010 339 3hexagon-head bolt   2 M 058
  M 6 X 40
30 999 703 181 40stopper   1 M 058
  towing lug   1 M 058
  see group
  0/01/00
32 N 012 042 4lock ring Hinter 2
  B 12
34 944 505 243 00eccentric washer Hinter 2
35 N 100 436 02pan-head Schraube Hinter 2
  M 12 X 1,5 X 65
36 999 591 498 40special nut   X
37 900 143 134 00tapping Schraube   X
  BZ 4,2 X 9,5

Pos__Part_Number__DescriptionRemarkQty.Model
38 N 011 522 8washer 4,3
