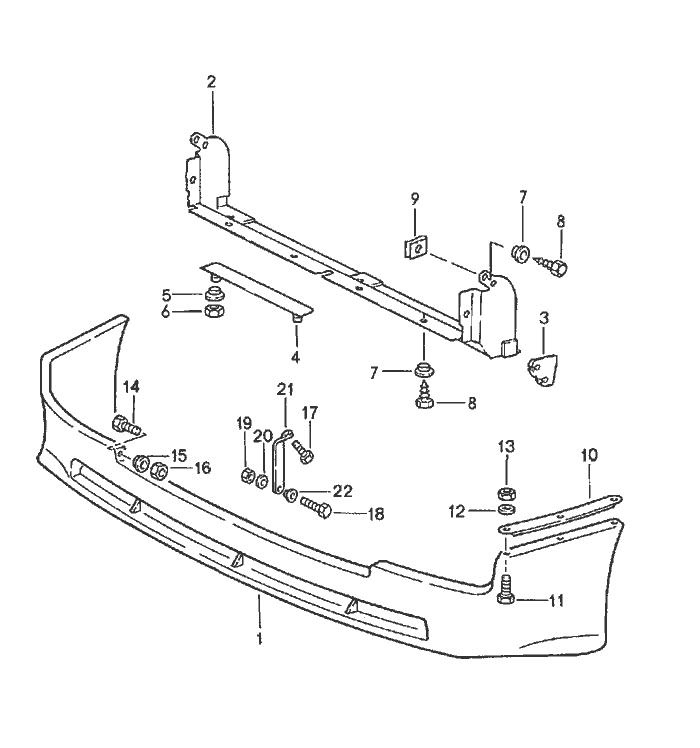

Porsche 944 Vorder Spoiler Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		front spoiler	-89		944
(1)	931 505 371 04	front spoiler		1
2	944 575 221 00	air duct		1	(CDN)
(2)	944 575 221 01	air duct		1	M 573
3	951 575 137 01	grommet		1	M 573
4	944 505 055 00	attachment strip		2
5	928 503 255 00	spacer		4
6	900 910 010 09	lock nut		4
		M 6
7	937 503 255 01	spacer		5
8	N 010 215 13	hexagon-head bolt		5
		M 6 X 15
9	999 507 246 02	speed nut		2
		M 6
10	944 503 513 00	attachment strip		2
11	N 010 215 13	hexagon-head bolt		6
		M6 X 15
12	N 011 524 7	washer		6
		A 6,4
13	900 910 010 09	lock nut		6
		M 6
14	N 010 215 13	hexagon-head bolt		2
		M6 X 15
15	937 503 255 00	spacer		2
16	900 910 010 09	lock nut		2
		M 6
17	999 072 005 09	hexagon-head bolt		2
		M 6 X 12
18	N 010 215 13	hexagon-head bolt		1
		M 6 X 15
19	900 910 010 09	lock nut		1
		M 6

Pos	__Part_Number__	Description	Qty.
20	N 011 524 7	washer	1
		A 6,4
21	944 505 179 00	retaining bracket	1
22	944 503 255 00	spacer	1
