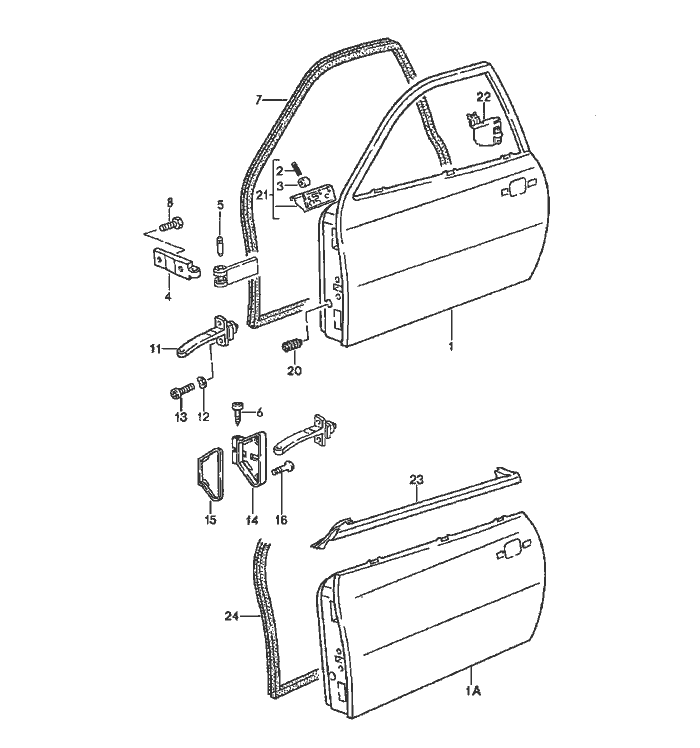

Porsche 944 Door Teile

Door


Pos__Part_Number__DescriptionRemarkQty.Model
  door
1 944 531 005 02door in white Left1 COUPE
(1) 945 531 006 02door in white Right1 COUPE
1A 941 531 901 10door Left Hand Drive \/ Left Side1 CABRIO
(1A) 941 531 902 10door Left Hand Drive \/ Right Side1 CABRIO
2 N 013 295 1tensioning sleeve  2
3 928 531 235 03threaded piece  2
4 171 831 403hinge half  4
5 321 831 421hinge pin  4
6 928 537 419 03pan-head Schraube  2
7 944 537 091 00door seal Left1
(7) 944 537 092 00door seal Right1
8 N 902 180 01combination Schraube  8
  M 8 X 14
11 944 537 609 00door support  2
12 N 011 524 7washer  4
  B 6
13 900 067 008 02pan-head Schraube  4
  M 6 X 12
14 928 537 417 02bearing bracket Left1
(14) 928 537 418 02bearing bracket Right1
15 928 537 425 02desk pad Left1
(15) 928 537 426 02desk pad Right1
16 928 537 459 02oval-head Schraube  4
  M 6 X 20
20 477 971 910bellows  2
21 944 531 239 00reinforcement Left1
  door mirror
(21) 944 531 240 00reinforcement Right1
  door mirror

Pos__Part_Number__DescriptionRemarkQty.Model
22 944 531 135 00cover plate Left 1
(22) 944 531 136 00cover plate Right 1
23 941 537 093 10sealing strip outer Left 1 CABRIO
(23) 941 537 094 10sealing strip outer Right 1 CABRIO
(23) 941 537 572 10sealing for door slot inner Left 1 CABRIO
(23) 941 537 572 10sealing for door slot inner Right 1 CABRIO
24 941 537 091 10door seal Left 1 CABRIO
(24) 941 537 092 10door seal Right 1 CABRIO
