Porsche 944 Power Windows Teile

Power Windows

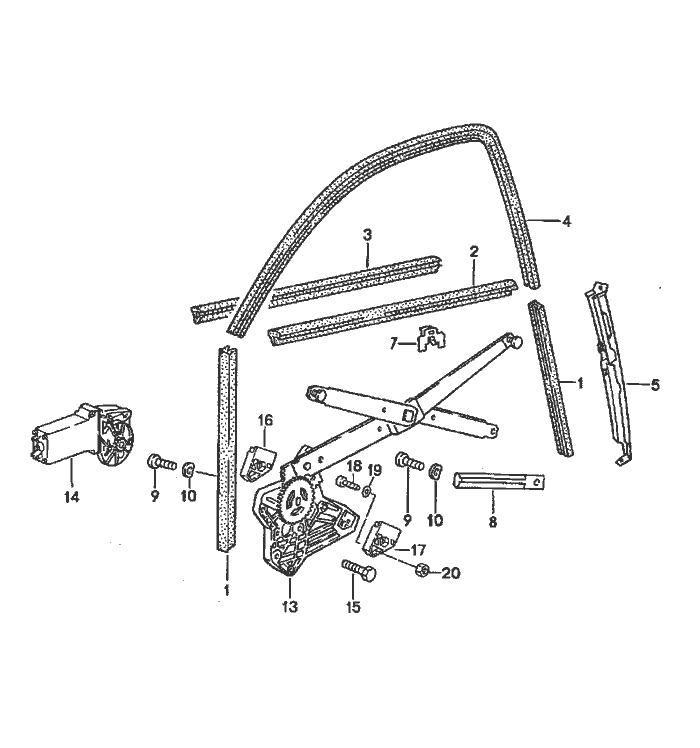

Pos__Part_Number__DescriptionRemarkQty.Model
  power windows    COUPE
  window guide
1 477 837 385window guide   4
2 477 837 469 Asealing strip Left 1
  outer
(2) 477 837 470 Asealing strip Right 1
  outer
3 477 837 471 Aseal   2
  inner
4 944 537 079 00window guide Left 1
(4) 944 537 080 00window guide Right 1
5 944 531 103 00window guide rail Left 1
(5) 944 531 104 00window guide rail Right 1
7 171 837 485clamp   10
8 944 537 589 00guide rail   2
9 999 217 029 02hexagon-head bolt   12
  M 6 X 10
  self-locking
10 N 011 652 1washer   12
  A 7 X 12
13 944 537 941 01cross-arm Left 1
(13) 944 537 942 01cross-arm Right 1
14 477 959 123 Aengine and transmission Left 1
(14) 477 959 124 Aengine and transmission Right 1
15 N 014 228 4countersunk-head Schraube   6
  AM 6 X 12
16 944 537 972 00stop Left 1
  upper
16 944 537 972 00stop Right 1
  lower
17 944 537 971 00stop Left 1
  lower

Pos__Part_Number__DescriptionRemarkQty.Model
17 944 537 971 00stop upper Right 1
18 N 014 707 2pan-head Schraube M8X15   4
19 900 336 004 02lock washer   4
20 N 011 118 8nut M8   4
  electrical components power windows see group 9/02/27,9/03/00
