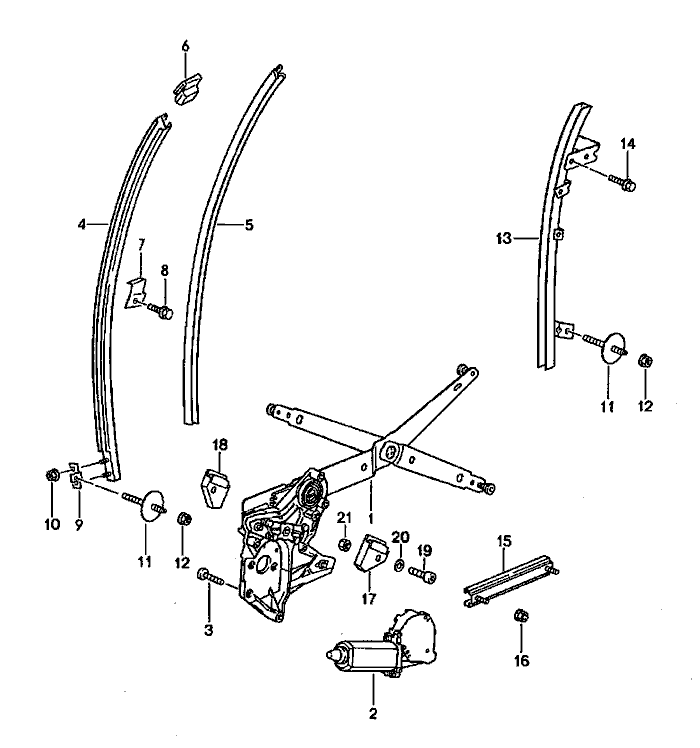

Porsche 944 Power Windows Teile
Pos
__Part_Number__
Description
Remark
Qty.
Model
power windows
CABRIO
window guide
(1)
941 537 901 10
cross-arm
Left
1
1
941 537 902 10
cross-arm
Right
1
(2)
477 959 123 A
engine and transmission
Left
1
2
477 959 124 A
engine and transmission
Right
1
3
N 014 228 4
countersunk-head Schraube
6
AM 6 X 12
(4)
941 531 505 10
window guide rail
Vorder Left
1
4
941 531 506 10
window guide rail
Vorder Right
1
5
941 531 530 10
window guide
2
(6)
941 531 527 10
terminal piece
Left
1
6
941 531 528 10
terminal piece
Right
1
(7)
941 531 521 10
support
Left
1
7
941 531 522 10
support
Right
1
8
900 075 355 02
combination Schraube
2
M6X16
(9)
941 531 525 10
support
Left
1
9
941 531 524 10
support
Right
1
10
941 531 637 10
hexagon nut
4
M6
11
941 504 723 12
threaded bolt
4
12
941 531 637 10
hexagon nut
4
M6
(13)
941 531 511 10
window guide rail
Hinter Left
1
13
941 531 512 10
window guide rail
Hinter Right
1
14
900 075 355 02
combination Schraube
2
M6X16
15
941 537 499 10
guide rail
2
Pos
__Part_Number__
Description
Remark
Qty.
Model
16
941 531 637 10
hexagon nut M6
4
17
944 537 972 00
stop upper
Left
1
17
944 537 972 00
stop lower
Right
1
18
944 537 971 00
stop lower
Left
1
18
944 537 971 00
stop upper
Right
1
19
N 014 707 2
pan-head Schraube M8X15
4
20
900 336 004 02
lock washer
4
21
N 011 118 8
nut M8
4
