Porsche 944 Linings Teile

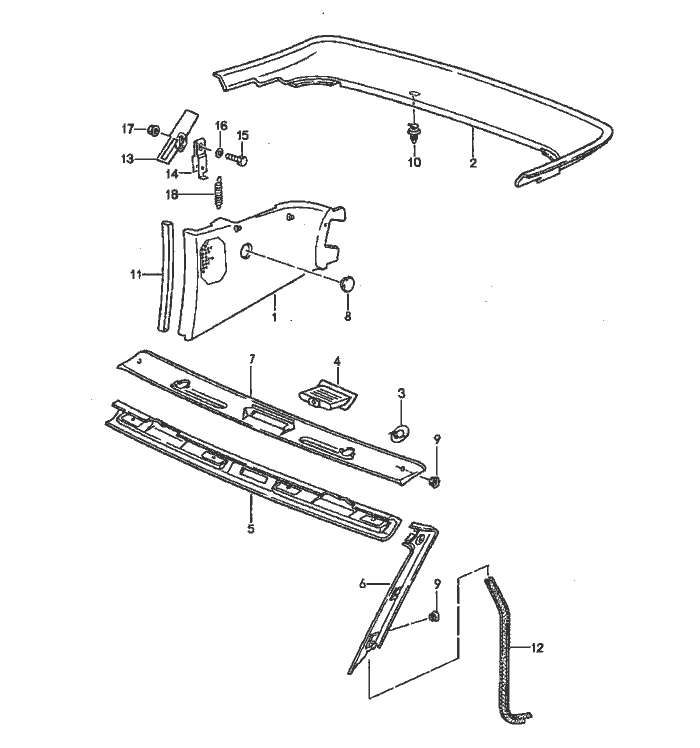

Pos	__Part_Number__	Description	Remark	Qty.	Model
		linings				CABRIO
(1)	941 555 021 10	side trim panel	Left		1
	05T	black
	3KY	marine blue		-90
	5LX	burgundy		-90
	G12	cobalt blue		91-
	B10	classic grey		91
1	941 555 022 10	side trim panel	Right		1
	05T	black
	3KY	marine blue		-90
	5LX	burgundy		-90
	G12	cobalt blue		91-
	B10	classic grey		91
2	941 555 232 10	lining			1
	A15	anthracite
3	941 555 335 10	rosette			2
	01C	satin black
4	941 555 339 10	finger plate			1
	01C	satin black
5	941 555 037 10	lining windscreen frame			1
	05T	black
	3KY	marine blue		-90
	5LX	burgundy		-90
	G12	cobalt blue		91-
	B10	classic grey		91
6	941 555 053 10	lining windscreen frame	Left		1

Pos	__Part_Number__	Description	Remark	Qty.	Model
	05T	black
	3KY	marine blue		-90
	5LX	burgundy		-90
	G12	cobalt blue		91-
	B10	classic grey		91-
(6)	941 555 054 10	lining windscreen frame	Right		1
	05T	black
	3KY	marine blue		-90
	5LX	burgundy		-90
	G12	cobalt blue		91-
	B10	classic grey		91
7	941 555 337 10	lining			1
	05T	black
	3KY	marine blue		-90
	5LX	burgundy		-90
	G12	cobalt blue		91-
	B10	classic grey		91
8	911 555 523 66	cap			2
	70B	black
	9JJ	marine blue		-90
	9MM	burgundy		-90
	6ZF	cobalt blue		91
	4XC	classic grey		91
9	941 504 710 10	filler piece			8
	01C	black
	9JJ	marine blue		-90

Pos	__Part_Number__	Description	Remark	Qty.	Model
	9MM	burgundy		-90
	6ZF	cobalt blue		91
	4XC	classic grey		91
10	941 504 715 10	fastening plug			8
11	941 555 593 10	piping			2
12	941 555 743 11	gasket	Left		1
(12)	941 555 744 11	gasket hinge pillar	Right		1
(13)	941 555 131 10	cover	Left		1
	A15	anthracite
13	941 555 132 10	cover	Right		1
	A15	anthracite
(14)	941 555 355 10	joint fork	Left		1
14	941 555 356 10	joint fork	Right		1
15	941 504 806 10	hexagon-head bolt M 6 X 16			2
16	N 011 524 7	washer A 6,4			2
17	900 910 010 09	lock nut M 6			2
18	941 555 525 10	spring			2
