Porsche 944 Sun Visor Teile

Sun Visor

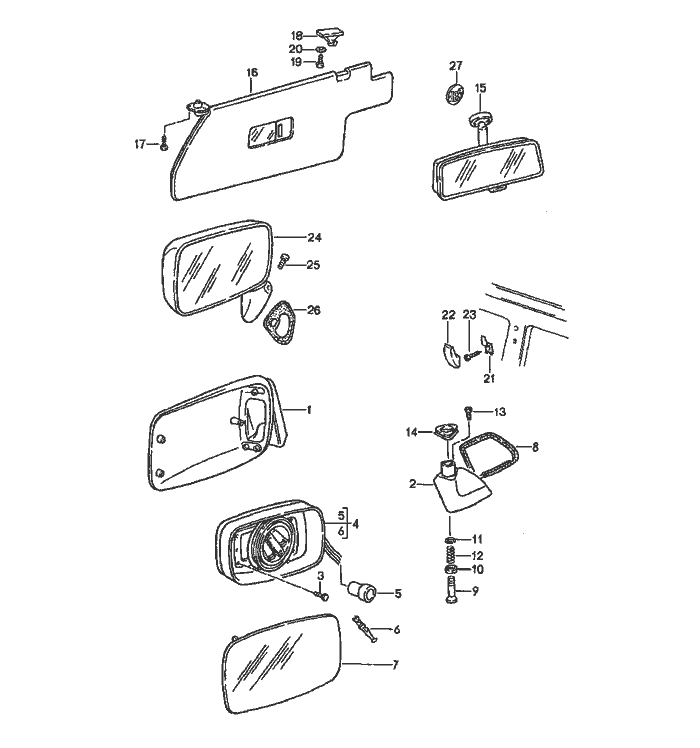

Pos__Part_Number__DescriptionRemarkQty.Model
  sun visor
  door mirror
  interior mirror
1 911 731 043 03mirror housing Left1
(1) 911 731 044 03mirror housing Right1
2 944 731 141 00mirror base Left Hand Drive \/ Left Side1
(2) 944 731 142 00mirror base Left Hand Drive \/ Right Side1
3 999 143 003 02hexagon-head bolt  3
  M 5 X 10
4 944 731 027 01covering frame  1
5 803 971 980pin connector socket  1
6 N 017 564 1round connector  6
7 944 731 035 02mirror glass  1
  plane
(7) 944 731 035 06mirror glass Right1
  convex
(7) 477 857 611 Bmirror glass  1 M 637
  plane
(7) 477 857 611 Dmirror glass Left Hand Drive \/ Right Side1 M 637
  convex
8 944 731 505 01desk pad Left1
(8) 945 731 506 01desk pad Right1
9 911 731 257 02guide tube  1
10 911 731 345 02centring washer  1
  lower
11 911 731 347 00centring washer  1
  upper
12 911 731 029 01compression spring  1
13 999 067 026 07pan-head Schraube  1
  M 5 X 40 X 25
14 944 731 143 00seal  1
15 477 857 511 Ainterior mirror  1

Pos__Part_Number__DescriptionRemarkQty.Model
 01Csatin black
16 944 731 031 01sun visor Left 1 COUPE
 05Tblack
 XF4burgundy  -90
 7YUcobalt blue  91
 6WJclassic grey  91-
(16) 944 731 032 01sun visor Right 1 COUPE
 05Tblack
 XF4burgundy  -90
 7YUcobalt blue  91
 6WJclassic grey  91-
(16) 941 731 031 10sun visor Left 1 CABRIO
 05Tblack
 3KAmarine blue  -90
 XF4burgundy  -90
 7YUcobalt blue  91
 6WJclassic grey  91-
(16) 941 731 032 10sun visor Right 1 CABRIO
 05Tblack
 3KAmarine blue  -90
 XF4burgundy  -90
 7YUcobalt blue  91
 6WJclassic grey  91
17 N 014 096 3tapping Schraube B 4,2 X 22   6
18 944 731 439 00support   2 COUPE
(18) 964 731 319 40bearing bracket Left 2 CABRIO

Pos__Part_Number__DescriptionRemarkQty.Model
(18) 964 731 320 40bearing sun visor Right2 CABRIO
19 900 143 047 07tapping Schraube B 4,2 X 19  4
20 900 151 028 02washer B 4,3  4
21 901 552 872 20coat hook  2
22 901 552 871 40cover  2
23 900 250 007 02tapping Schraube AM 5 X 12  2
24 477 857 521 Ddoor mirror plane Left Hand Drive \/ Left Side1 M 637
(24) 477 857 522 Ddoor mirror plane Left Hand Drive \/ Right Side1 M 637
(24) 477 857 522 Hdoor mirror convex Left Hand Drive \/ Right Side1 M 637
25 999 067 026 07pan-head Schraube  1 M 637
26 477 857 579desk pad Left1 M 637
(26) 478 857 579desk pad Right1 M 637
27 477 845 043adhesive plate adhesive set  1
  see group 0/05/00
