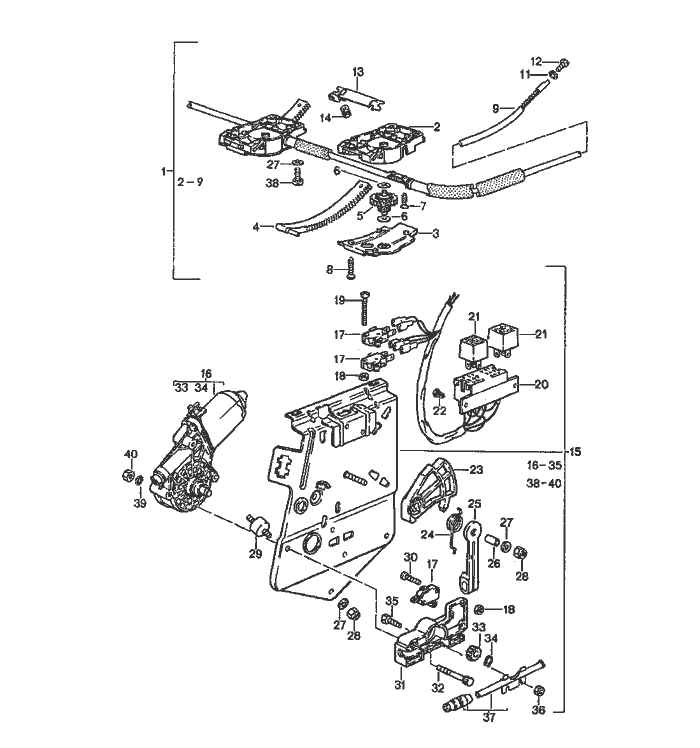

Porsche 944 Lifting Roof Teile
Pos
__Part_Number__
Description
Remark
Qty.
Model
lifting roof
M 650
driving mechanism
1
944 564 041 01
assembly kit
1
2
944 564 507 01
guide
2
3
944 564 509 01
plate
2
4
944 564 501 01
segment
Left
1
(4)
944 564 502 01
segment
Right
1
5
944 564 430 01
gear wheel
2
6
944 564 459 01
shim
4
7
999 919 051 02
countersunk-head Schraube
4
M 4 X 8
8
999 919 052 02
countersunk-head Schraube
10
M 4 X 18
9
944 564 043 02
shaft
1
11
999 523 116 01
lock washer
3
12
N 014 121 6
oval-head Schraube
1
M 4 X 6
13
944 564 461 00
support
Left
1
(13)
944 564 462 00
support
Right
1
14
999 076 036 02
adjusting nut
4
M 4
15
944 624 055 01
electric drive
1
16
944 624 011 01
electric motor
1
17
944 613 128 01
microswitch
3
18
N 011 002 2
hexagon nut
4
19
900 146 072 02
oval-head Schraube
2
M 3 X 25
20
944 612 011 01
wiring harness
1
21
431 951 253 D
relay
2
22
999 591 854 40
expansion rivet
2
Pos
__Part_Number__
Description
Remark
Qty.
Model
23
944 564 535 00
lever
1
24
944 564 539 00
spring
1
25
944 564 537 00
lever
1
26
944 564 541 00
sleeve
1
27
N 011 524 7
washer
6
6,4
28
900 910 012 02
lock nut
2
M 6
29
999 703 349 00
rubber mounting
1
30
N 044 134 2
oval-head Schraube
2
M 3 X 20
31
944 564 515 01
housing
1
32
944 564 543 00
Schraube
2
33
944 564 437 01
pinion
1
34
900 116 003 02
circlip
1
35
900 075 100 02
hexagon-head bolt
2
M 4 X 12
36
N 011 004 6
hexagon nut
2
M 4
37
944 564 048 00
pipe
1
38
900 067 011 02
pan-head Schraube
4
39
999 523 117 01
lock washer
3
40
900 076 010 02
hexagon nut
3
M 6
