Porsche 944 Convertible Top Control Teile

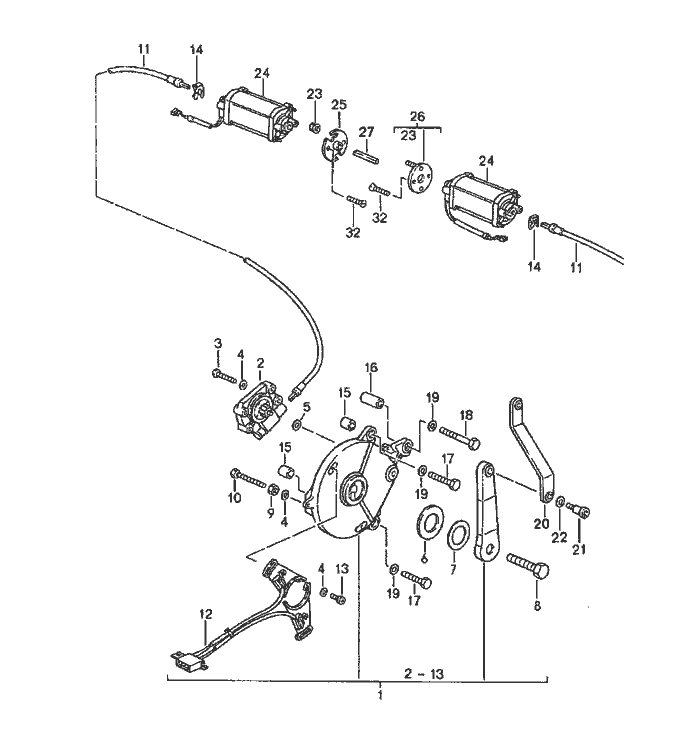

Convertible Top Control


Pos__Part_Number__DescriptionRemarkQty.Model
  convertible top control    CABRIO
  electric
(1) 911 561 045 68transmission Left 1
1 911 561 046 68transmission Right 1
(2) 911 561 103 65planetary transmission Left 1
2 911 561 104 65planetary transmission Right 1
3 900 146 025 02Schraube   2
  M 4 X 18
4 900 025 002 02washer   6
  A 4,3
5 900 234 003 02shim   2
  8 X 14 X 1,0
6 999 025 254 10washer   2
  30 X 50 X 1,5
7 900 234 143 02shim   X
  30 X 42 X 0,1
8 900 378 288 01hexagon-head bolt   2
  M 12 X 30
  micro-self-locking
9 N 011 004 6hexagon nut   2
  M 4
10 N 040 257 1hexagon-head bolt   2
  M 4 X 22
(11) 911 561 107 66shaft Left 1
11 911 561 108 66shaft Right 1
12 911 613 037 00microswitch   1
  with
  plate
13 N 014 122 8oval-head Schraube   2
  M 4 X 8
14 911 561 643 65spring clamp   2
15 941 561 831 10bush   4
16 941 561 833 10bush   2

Pos__Part_Number__DescriptionRemarkQty.Model
17 N 010 347 5hexagon-head bolt M 6 X 35  4
18 N 040 303 1hexagon-head bolt M 6 X 50  2
19 N 015 404 1washer A 6,4  6
20 941 561 681 10push rod  2
21 911 561 418 00Schraube M 8 X 20  2
22 941 504 815 10bearing sleeve  4
23 999 084 078 02hexagon nut M 5  2
24 911 624 117 00electric motor  2
25 911 624 269 01washer  1
26 911 624 171 01washer  1
27 911 624 273 00connecting piece  1
32 999 919 045 02locking Schraube M 5 X 16  4
