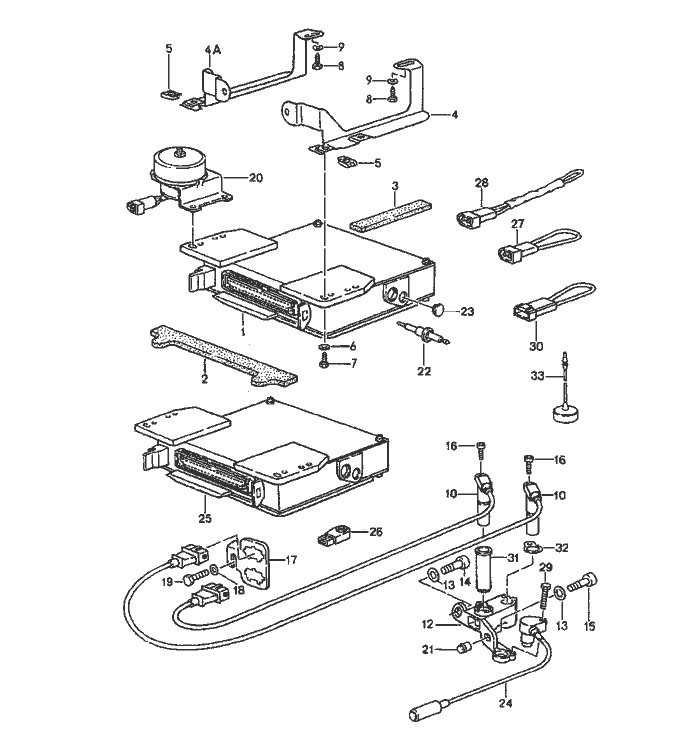

Porsche 944 Motor Elektriks 2 Teile

Motor Elektriks 2


Pos__Part_Number__DescriptionRemarkQty.Model
  engine electrics 2
1 944 618 121 06control unit   1 M44.11/12
1 944 618 121 FXcontrol unit   1 M44.11/12
  -dme
1 944 618 124 02control unit  -90 1 M44.41
  -dme
1 944 618 124 05control unit  911 M44.41
  -dme
1 951 618 121 10control unit   1 M44.52
  -dme
-944 612 417 01cap  89 1 944
  for  -91  TURBO
  plug socket
2 944 618 119 00plastic foam strip   1
3 944 618 120 00plastic foam strip   1
4 944 618 141 00bracket Left 1
4A 944 618 142 00bracket Right 1
5 N 901 561 01speed nut   4
6 900 025 003 02washer   4
  A 5,3
7 900 187 004 02hexagon-head tapping Schraube   4
  B 4,8 X 18
8 N 013 884 5tapping Schraube Left Hand Drive 2
  B 4,8 X 13
9 N 012 225 2spring washer Left Hand Drive 2
  B 5
10 944 606 115 00pulse sender   2
(12) 944 101 031 03support   1
12 944 101 321 07support   1
13 900 025 007 02washer   2
  A 8,4
14 N 014 726 3pan-head Schraube   1
  M 8 X 30

Pos__Part_Number__DescriptionRemarkQty.Model
15 N 014 725 2pan-head Schraube  1
  M 8 X 25
16 999 217 026 02locking Schraube
  M 6 X 24
17 944 612 151 00support  1
18 N 011 524 7washer  1
  A 6,4
19 N 010 215 13hexagon-head bolt  1
  M 6 X 15
20 944 606 051 00altitude capsule  1
21 900 197 047 08tensioning sleeve  1
24 911 606 108 00timing mark sender  1
25 951 618 113 09control unit  1 M44.52
  antiknock regulation
26 944 606 145 00knock sensor  1 M44.52
27 944 612 525 00coding plug -89 1
28 944 612 421 00adapter plug  1
29 999 217 048 02hexagon-head bolt  1
  M 8 X 25
30 911 612 422 00adapter plug  1 M 150
31 944 101 320 00sleeve  1
32 944 101 335 00washer  X
  0,3
32 951 101 325 00washer  X
  2,0
33 928 612 273 00cap  1
  for
  plug socket
