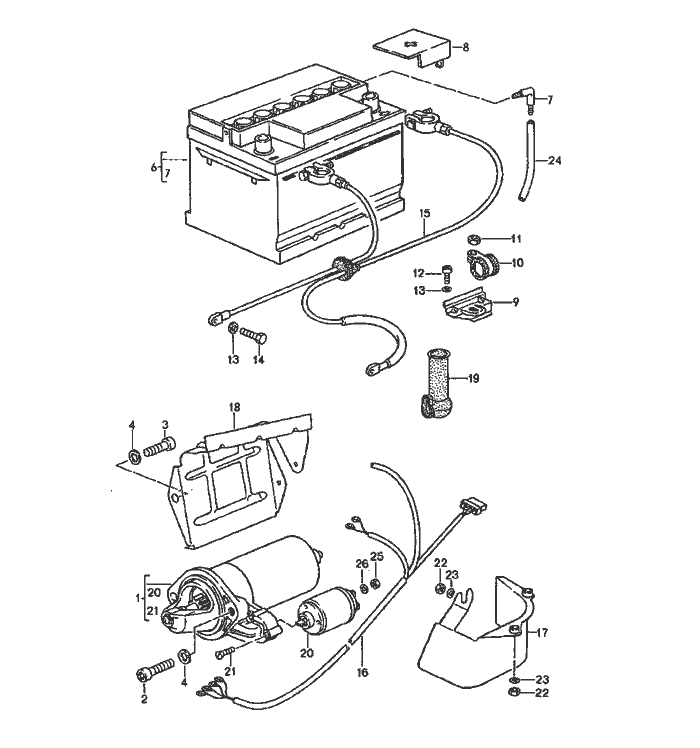

Porsche 944 Battery Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		battery
		starter
		wiring harnesses
1	951 604 101 00	starter			1
		1,4 KW
1	951 604 102 00	starter			1	M 198
		1,7 KW
2	N 010 491 1	hexagon-head bolt			1
		M 12 X 50
3	N 040 253 1	hexagon-head bolt			1
		M 12 X 35
4	900 028 014 02	spring washer			2
		B 12
(4)	900 025 009 02	washer			1	TURBO
		A 13
(4)	N 011 564 2	washer			1	TURBO
		13
6	944 611 105 00	battery	Left Hand Drive		1	M 197
		63 AH
6	999 611 065 20	battery	Left Hand Drive		1	M 198
		64 AH
7	893 915 507	angled pipe			1
8	477 915 429 A	pole covering	Left Hand Drive		1
9	914 611 233 10	tension terminal	Left Hand Drive		1
10	999 511 077 02	clamp	Left Hand Drive		1
11	477 915 489	hexagon nut	Left Hand Drive		1
		M 8
14	N 010 241 0	hexagon-head bolt			1
		M 8 X 16
15	944 612 027 00	wiring harness	Left Hand Drive		1
		battery
		starter
16	944 607 029 00	wiring harness			1	944/TURBO
		starter
		generator

Pos	__Part_Number__	Description	Remark	Qty.	Model
16	944 607 029 02	wiring harness			1	944S2
		starter
		generator
16	944 607 029 01	wiring harness			1	944/TURBO
		starter				M 573
		generator
16	944 607 029 03	wiring harness			1	944S2 M 573
		starter
		generator
17	951 604 043 00	heat shield	Left		1	TURBO
18	951 604 454 01	heat shield	Right		1	TURBO
19	999 659 006 50	protection cap			1
20	951 604 902 00	solenoid engaging switch			1
20	951 604 904 00	solenoid engaging switch			1	M 198
21	951 604 901 00	countersunk-head Schraube			3
21	964 604 901 00	fastening Schraube			3	M 198
22	900 076 010 02	hexagon nut			3	TURBO
		M 6
23	N 011 524 7	washer			3	TURBO
		A 6,4
-	477 915 505	hose			*
24	-	250 MM			1
25	N 011 005 14	hexagon nut			1
		M 5
(25)	900 076 010 02	hexagon nut			1	M 198
		M 6
26	900 025 003 02	washer			1
		A 5.3
(26)	N 011 524 7	washer			1	M 198
		A 6.4
