Porsche 944 Windscreen Wiper System Teile

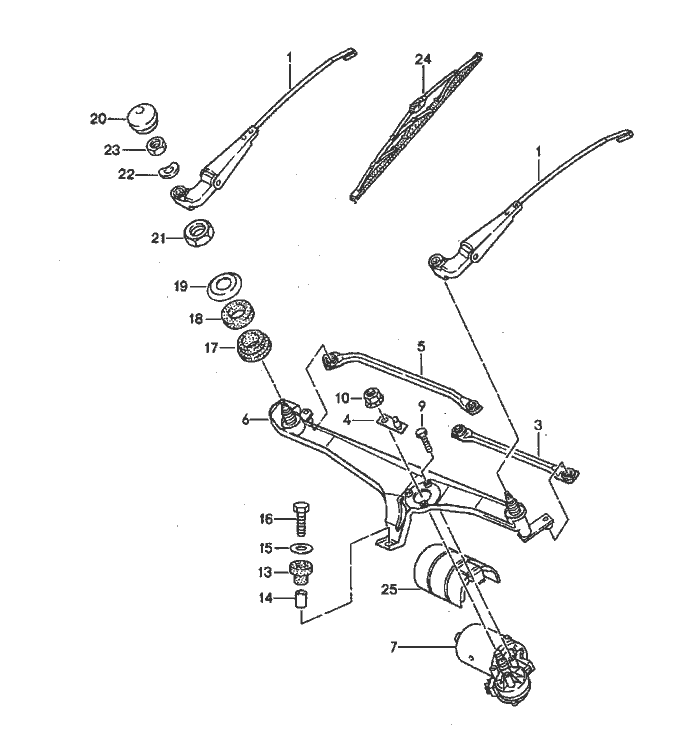

Windscreen Wiper System


Pos__Part_Number__DescriptionRemarkQty.Model
  windscreen wiper system
1 944 628 028 02wiper arm Left Hand Drive 2
3 944 628 033 00connecting rod Left Hand Drive 1
  short
4 944 628 330 00crank   1
5 944 628 034 00connecting rod Left Hand Drive 1
  long
6 944 628 961 00frame Left Hand Drive 1
7 944 628 303 01wiper motor   1
9 900 278 003 02Schraube   3
  M 6 X 20
10 N 012 229 3spring washer   1
  M 6
13 944 628 126 00grommet   1
14 944 628 127 00bush   1
15 N 902 707 01washer   1
  B 6,4
16 900 075 341 02combination Schraube   1
  M 6 X 20
17 944 628 129 00rubber bush   2
18 944 628 128 01rubber bush   2
19 944 628 125 01flange washer   2
(20) 944 628 305 00cap   2
21 999 034 013 02hexagon nut   2
  M 18 X 1,5
22 803 955 437washer   2
23 N 011 151 3hexagon nut   2
  M 8
24 928 628 901 01wiper blade   2
25 A 944 628 101 00cover   1
25 944 628 101 02cover   1

Pos__Part_Number__DescriptionRemarkQty.Model
 01Csatin black
