Porsche 944 Switch Teile

Switch

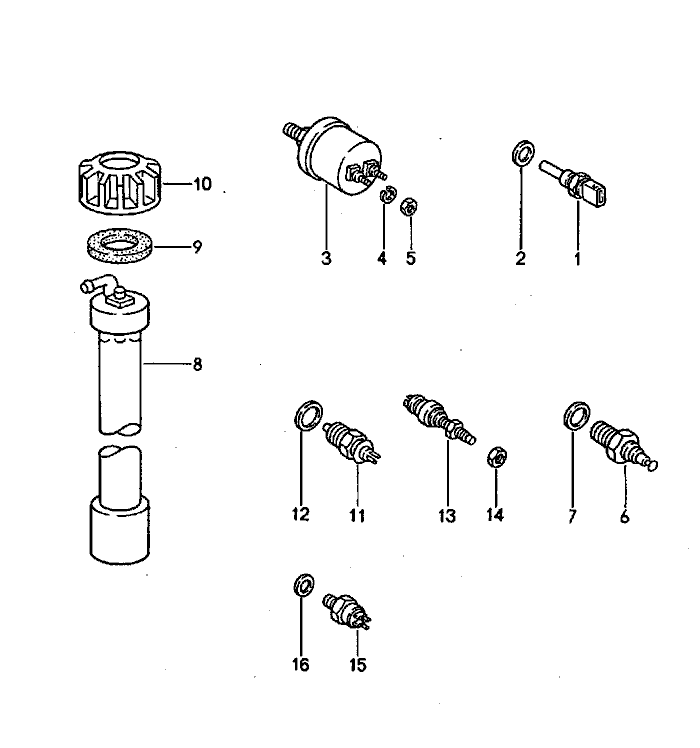

Pos__Part_Number__DescriptionRemarkQty.Model
  switch
  and
  sender
1 944 606 125 00temperature sensor  1
2 900 123 101 30sealing ring  1
  12 X 18
3 928 606 203 01pressure transmitter  1
4 N 012 224 3spring washer  2
  A 4
5 N 011 004 6hexagon nut  2
  M 4
6 928 606 201 03temperature sensor  1
  for cooling water
7 900 123 007 30sealing ring  1
  A 14 X 18
8 944 641 037 01tank gauge  1
9 944 201 327 00sealing ring  1
10 951 201 375 00union nut  1
11 084 941 521switch  1
  back-up light
12 900 123 106 30sealing ring  1
13 477 945 515brake light switch  1
14 481 945 529nut  1
15 944 606 137 00temperature switch  1 M44.41
  for
  intake manifold
16 900 123 008 30sealing ring  1 M44.41
