Porsche 944 Alarm System Teile

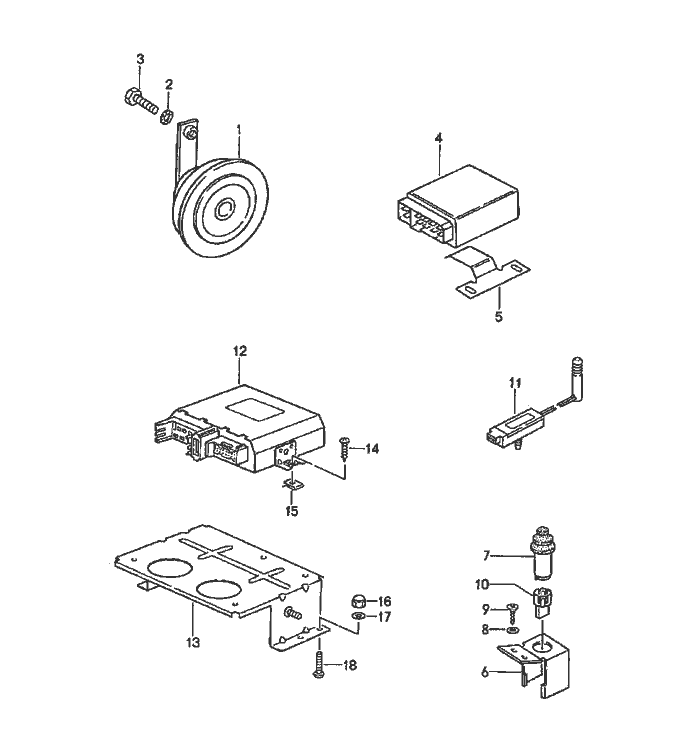

Alarm System


Pos__Part_Number__DescriptionRemarkQty.Model
  alarm system
1 944 637 103 01horn  1
2 999 523 102 02lock washer  1
  J 8,4
3 900 075 087 02hexagon-head bolt  1
  M 8 X 16
4 928 637 104 05alarm control unit -90 1
-928 612 433 01terminal sleeve housing -90 1
  8-pole
  blue
-815 971 989connector housing -90 1
  2-pole
5 944 637 051 00support -90 1 944
   -91  TURBO
5 944 637 051 01support -90 1 944S2
6 477 805 713support  1
7 928 613 173 00contact switch  1
8 N 011 521 3washer  2
  A 3,7
9 N 013 957 5tapping Schraube  2
  3,5 X 9,5
10 477 971 837connector housing  1
  for
  contact switch
11 944 637 138 00knob -90 2 944
  door latch -91  TURBO
  with
  lamp insert
11 944 637 238 00knob 91 2
 01Cblack
  door latch
  with
  lamp insert
12 928 618 260 01alarm control unit 91 1
  alarm system
  central locking system

Pos__Part_Number__DescriptionRemarkQty.Model
16 N 011 125 2cap nut M 5 91 3
17 900 025 003 02washer A 5,3 91 3
18 N 014 129 6oval-head Schraube M 5 X 10 91 3
-928 612 925 00wiring harness adapter for additional function use also:  1
-928 612 547 00connector housing  1
-171 971 998 Cconnector housing  1
-944 612 637 01protective tube  1
