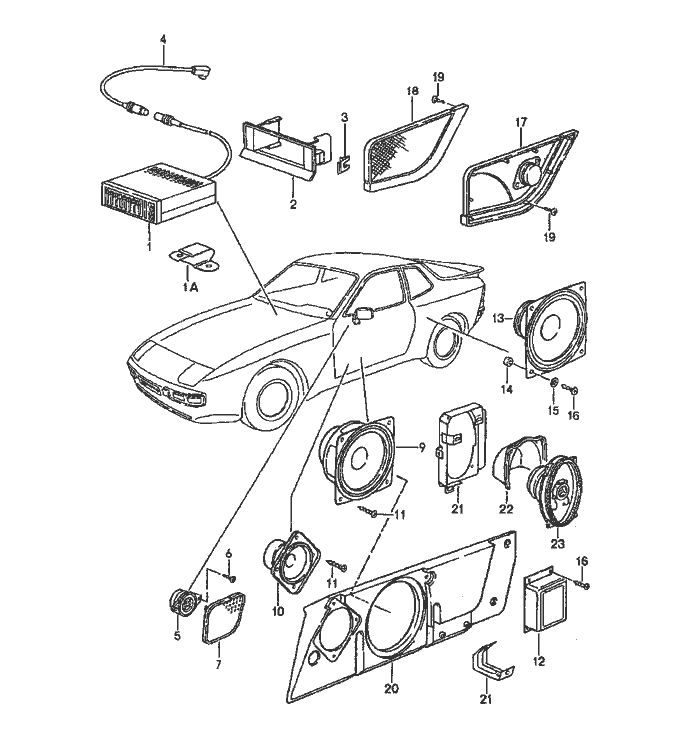

Porsche 944 SOUNDSYSTEM Teile

Pos	__Part_Number__	Description	Remark	Qty.	Model
		SOUNDSYSTEM
1	944 645 417 01	equaliser BEA 80			1
(1)	944 645 417 02	equaliser BEA 108			1
(-)	944 645 517 00	connecting cable for radio equaliser BEA 108			1
1A	944 645 065 00	retaining bar for equaliser			1
2	944 645 501 00	cover for BEA 80			1
(2)	944 645 501 01	cover for BEA 108			1
3	944 645 557 00	spring clamp			2
4	944 645 171 00	connecting cable			1
5	944 645 427 00	tweeter			2
6	N 013 958 7	tapping Schraube			4
7	944 645 431 00	cover	Left		1
	01C	black
	9MM	burgundy		-90
	9JJ	marine blue		-90
	6ZF	cobalt blue		91
	4XC	classic grey		91-
(7)	944 645 432 00	cover	Right		1
	01C	black
	9MM	burgundy		-90
	9JJ	marine blue		-90

Pos	__Part_Number__	Description	Remark	Qty.	Model
	6ZF	cobalt blue		91
	4XC	classic grey		91
9	944 645 429 00	woofer			2
10	944 645 419 00	mid-range loudspeaker			2
11	900 143 031 02	oval-head sheetmetal Schraube B 4,2 X 9,5			10
12	944 645 437 00	diplexer			2
13	944 645 425 00	woofer			2
14	477 035 375	bush			8
(14)	944 645 480 00	spacer sleeve		90	8	CABRIO
15	900 025 002 02	washer A 4,3			8
16	N 013 953 2	tapping Schraube B 2,9 X 9,5			16
17	944 645 045 00	loudspeaker	Left		1
	01C	black
	9MM	burgundy		-90
	9JJ	marine blue		-90
	6ZF	cobalt blue		91
	4XC	classic grey		91
18	944 645 046 00	loudspeaker	Right		1
	01C	black
	9MM	burgundy		-90
	9JJ	marine blue		-90
	6ZF	cobalt blue		91
	4XC	classic grey		91
19	999 919 032 02	oval-head Schraube 3,5 X 10			16
20	A 944 555 943 00	retaining frame	Left		1

Pos	__Part_Number__	Description	Remark	Model
20	944 555 943 00	retaining frame	Left	1
(20)	A 944 555 944 00	retaining frame	Right	1
(20)	944 555 944 00	retaining frame	Right	1
21	944 531 243 00	retaining bracket for retaining frame		4
21	941 555 573 10	mounting for loudspeaker	Left	1	CABRIO
(21)	941 555 574 10	mounting for loudspeaker	Left	1	CABRIO
22	941 555 575 10	covering for loudspeaker		2	CABRIO
23	944 645 464 00	loudspeaker		2	CABRIO
